Focal 100 IWSUB8 High Power Bass Amplifier
Details
High-power bass amplifier

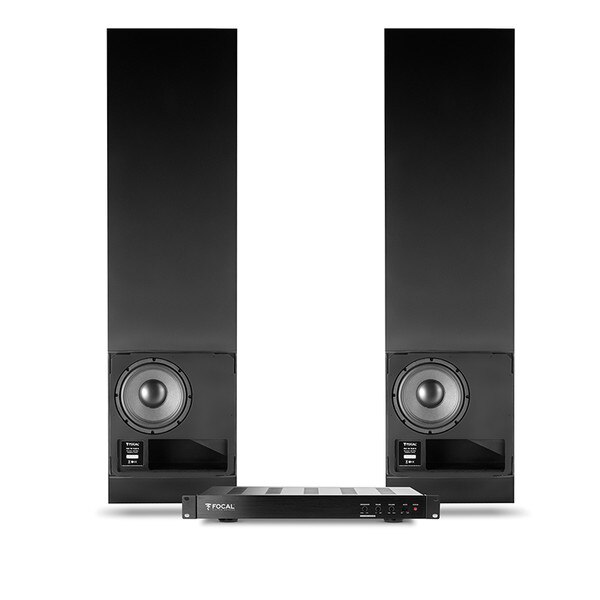

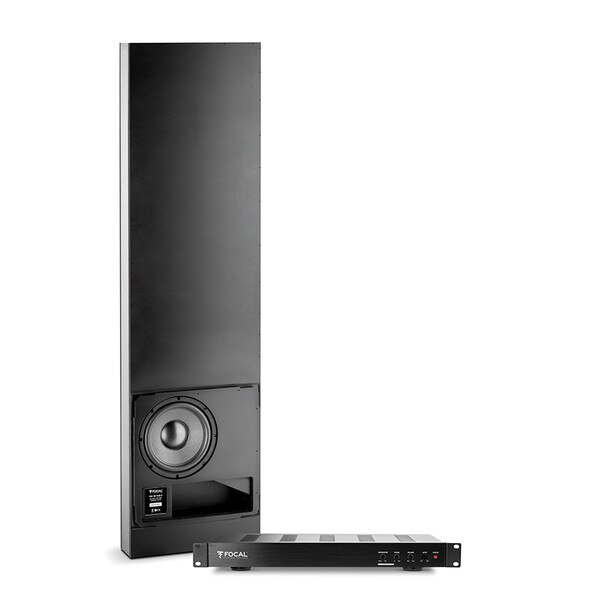

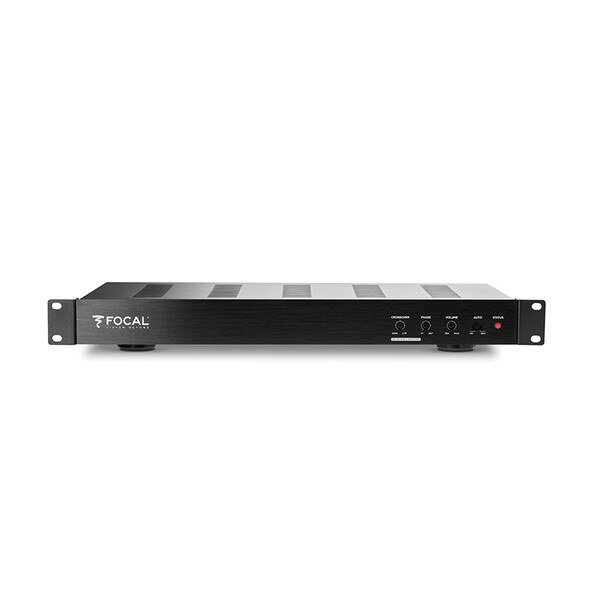

Designed for integrated, rack-mountable installations, the 100 IWSUB8 Amplifier combines power and high-level electronic protection. Developed to work in perfect harmony with the 100 IWSUB8 passive subwoofer, it can power two 100 IWSUB8 subwoofers connected in parallel.
High Power
The 100 IWSUB8 Amplifier delivers 200 watts of power and 150 watts of continuous power over 4 ohms, while offering extensive protection (dynamic power control, thermal and short-circuit protection, current overload protection).
Complementarity
The amplifier has been designed to work in perfect harmony with a 100 Series audio-video system, to create a unique sound ambience in the home.
Specifications
| Type | Subwoofer amplifier |
|---|---|
| Power (continuous) | Max 200W, 150W continuous (4Ώ) |
| Minimum load | 4Ώ |
| Voltage range | 100-120V~60Hz / 220-230V~50Hz |
| Power consumption | 150W |
| Stand-by power consumption | 0.5W |
| Bandwith | 20-250Hz |
| Subsonic filter | 18dB/oct. |

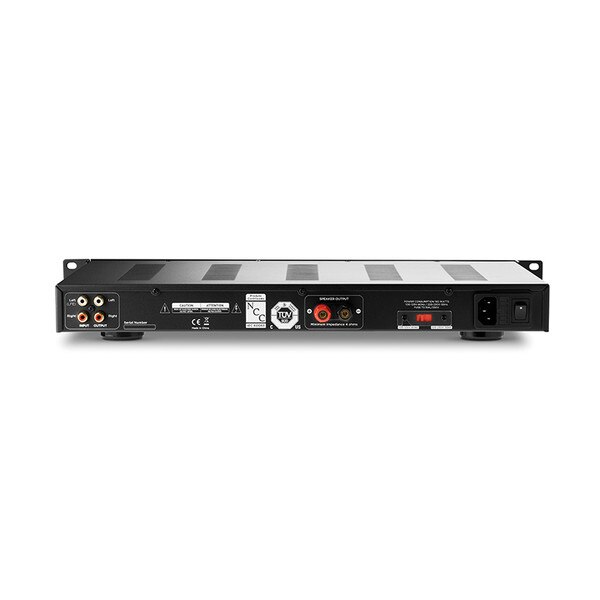

| Inputs | LFE, Line in L/R |
| Outputs | Line out L/R and subwoofer power output on speaker terminal |
| Cord | Detachable IEC power cord |
| Protection | Dynamic power control, thermal protection, short circuit, fuse, and over-current protection |
| Dimensions (HxWxD) | 13/4 (21/16 with stands) x 167/8 (19 with brackets) x 101/8" [44.5 x 429 x 257mm] |
| Net weight | 6.8lbs (3.1kg) |
