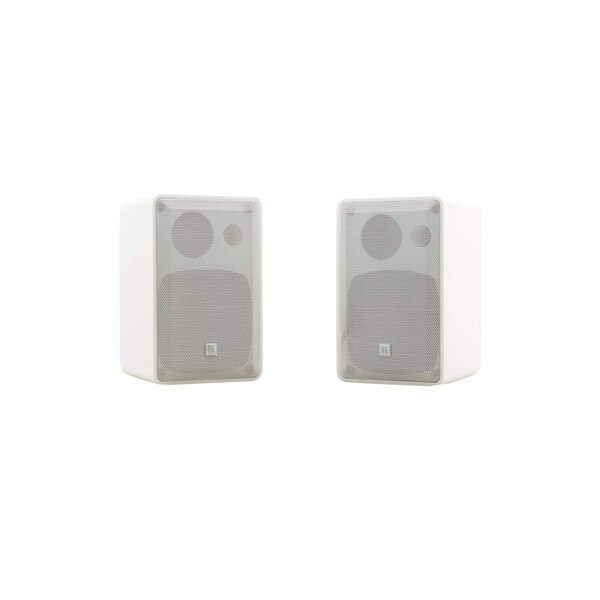

Kramer 4–Inch, 2–Way Open–Back Ceiling Speakers White
SKU: GALIL-4-O(PAIR)/WHITE
/WHITE_01.jpg?resizeid=3&resizeh=600&resizew=600)
/WHITE_02.jpg?resizeid=3&resizeh=600&resizew=600)
Details
4–Inch, 2–Way On–Wall Speakers
The Galil 4−O On−wall Compact Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation. Available in white or black.
Specifications
| Product Specification | |
|---|---|
| Description | 2–way on–wall speakers |
| Frequency Response | 90Hz to 20kHz @–10dB, 160Hz to 16kHz @±3dB |
| Woofer | 4” (101.5mm) polypropylene cone |
| Tweeter | 0.5” (13mm) Mylar |
| Impedance | 8Ω (transformer tap in off position) |
| Transformer Taps | 70V — 5W/2.5W/1.2W/Off (Lo–Z), 100V — 10W/5W/2.5W/Off (Lo–Z) |
| Sensitivity | 89dB 1W @1m |
| Max Spl | |
| Continuous | 95dB, peak: 98dB |
| Power Handling | 20W RMS, 60W continuous program |
| Crossover Frequency | 6kHz |
| Directivity Factor (Q) | 4 averaged 1kHz to 10kHz |
| Directivity Index (Di) | 6dB averaged 1kHz to 10kHz |
| Input Connectors | Terminal blocks |
| Materials | Frame, grill and brackets steel cabinet ABS |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Weight Per Single Speaker | 1.2kg (2.65lbs) approx |
| Weight With Mounting Kit | 1.6kg (3.5lbs) approx |
| Shipping Weight (For Pair) | 3.2kg (7.05lbs) approx |
| Dimensions With Mounting Brackets | |
| Dimensions (WxDxH) | 18.5cm x 10.7cm x 20.9cm (7.28” x 4.23” x 8.2”) |
| Installation Clearance | |
| Front Panel To Wall (With Mounting Bracket) | 15cm (5.9”), back panel to wall (with mounting bracket): 4.5cm (1.8”) |
| Accessories | 2 mounting brackets (including 4 knobs and 4 mounting screws) |
| Options | BCP–2S speaker cable |
| Colors | Available in white or black |
