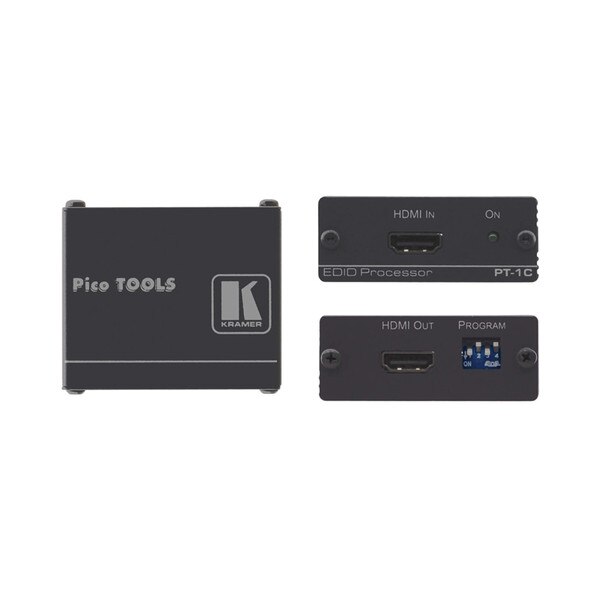

Kramer 4K HDR HDMI EDID Processor
SKU: PT-1C
Details
4K HDR HDMI EDID Processor
PT−1C is a 4K HDR EDID processor. It allows you to lock EDID signals and to support or not support HDCP, multi−channel audio or deep color signals that may or may not be compatible with the display.
Specifications
| Product Specification | |
|---|---|
| INPUT | 1 HDMI connector |
| OUTPUT | 1 HDMI connector |
| MAX DATA RATE | 17.82Gbps (5.94Gbps per data channel), 4K compatible |
| STANDARDS SUPPORTED | Supports HDR10, HDMI and HDCP 2.2 |
| CONTROLS | 4 DIP–switches |
| INDICATOR | Power LED |
| POWER REQUIREMENTS | Takes power from the HDMI line |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | –40° to +70°C (–40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non–condensing |
| PRODUCT DIMENSIONS | |
| Dimensions (WxDxH) | 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) |
| PRODUCT WEIGHT | 0.1kg (0.2lbs) approx. |
| SHIPPING DIMENSIONS | |
| Dimensions (WxDxH) | 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) |
| SHIPPING WEIGHT | 0.2kg (0.4lbs) approx. |
