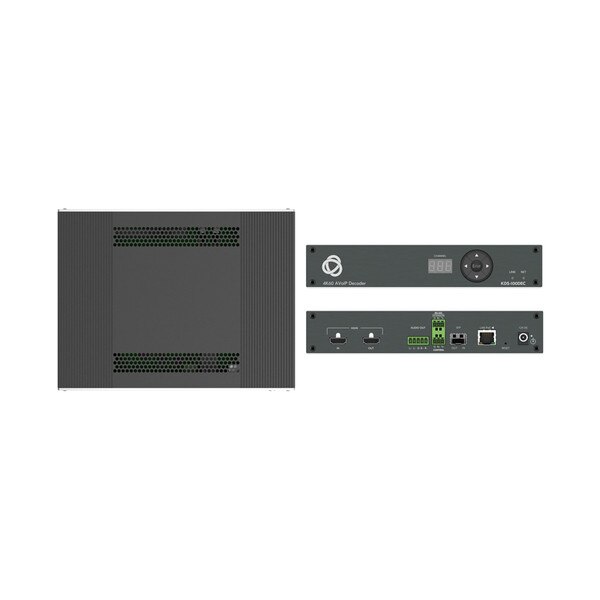

Kramer Open–standard low latency AVoIP 4K@60Hz streaming decoder with audio
SKU: KDS-100DEC
Details
Open–standard low latency AVoIP 4K@60Hz streaming decoder with audio
KDS−100DEC decoder is an advanced receiver for streamed 4K@60Hz video signals via Ethernet over copper or fiber cables. It also decodes the RS−232 or CEC signals transmitted over IP network from the encoder.
Specifications
| Inputs | |
|---|---|
| HDMI | On a female HDMI connector |
| Outputs | |
| HDMI | On a female HDMI connector |
| 1 Balanced Audio | On a 5–pin terminal block connector |
| Ports | |
| 1 Ethernet | On an RJ–45 Connection |
| 1 Rs-232 | On a 3–pin terminal block connector for control |
| 1 Rs-232 | On a 3–pin terminal block connector for data |
| 1 Fiber On An Lc Connector | Standard: 1000BASE–SX, 1000BASE–LX |
| Network | |
| Multicast | IGMPv2 |
| Rtp/Rtcp | Over UDP MPEG–TS |
| Video | |
| Maximum Input/Output Resolution | 3840x2160@60Hz 4:4:4 |
| Hdcp | High–Bandwidth Digital Content Protection 1.4 and 2.2 |
| Video Streaming | |
| Open Standard | H.264 and H.265 |
| Maximum Streaming Resolution | 3840x2160@60Hz 4:2:2 |
| Bit Rate Range | 1–60 Mbps |
| Latency | Low latency, about 40 msec |
| Scaler | Yes |
| Resolution | |
| Security | |
| User Interface | |
| Indicators | LINK, NET and ON LEDs, front panel channel number display |
| Rear Panel | Factory reset button |
| Controls | Embedded web pages, P3K API commands via Ethernet, front panel channel selection buttons |
| Power | |
| Poe+ | IEEE 802.3at on LAN (PoE) port |
| Optional Power Adapter | 12V DC, 5A |
| Consumption | 13.6W |
| Environmental Conditions | |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing |
| Storage Temperature | –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing |
| Humidity | 10% to 90%, non–condensing |
| General | |
| Product Dimensions | |
| Dimensions (WxDxH) | 21.5cm x 16.3cm x 4.4cm (8.5" x 6.4" x 1.72" ) |
| Shipping Dimensions | |
| Dimensions (WxDxH) | 34.5cm x 16.5cm x 5.2cm (13.6" x 6.5" x 2.05" ) |
| Product Dimensions | |
| Dimensions (WxDxH) | 21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) |
| Product Weight | |
| Shipping Dimensions | |
| Dimensions (WxDxH) | 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) |
| Shipping Weight | |
