Kramer Optical MM 850nm 10G SFP+ Transceiver
SKU: OSP-MM1
Details
Optical MM 850nm 10G SFP+ Transceiver

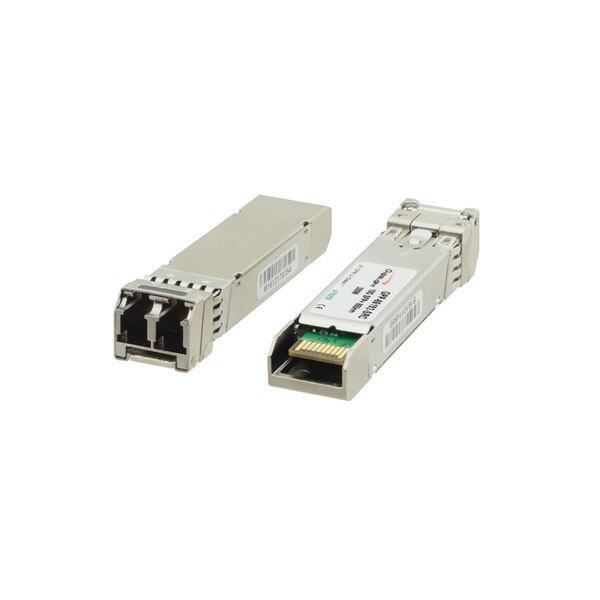

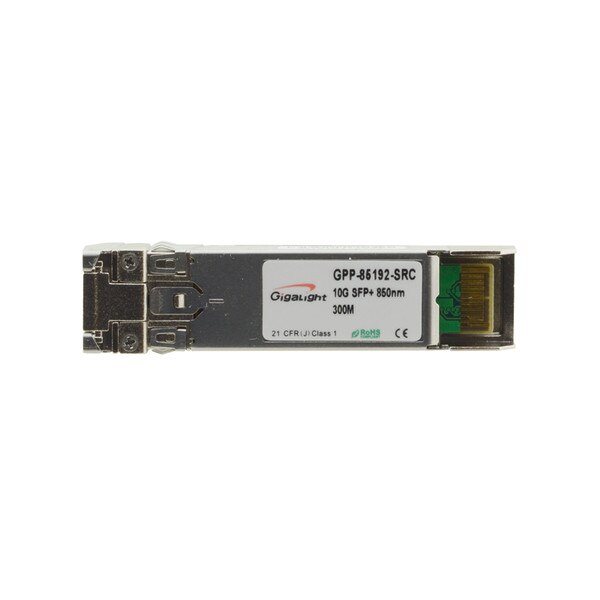

OSP−MM1 is a fiber optic transceiver for 850nm multimode signals. This standard pluggable SFP+ optical module has two LC connectors for reception and transmission of signals over two strands of multimode optical fiber.
Specifications
| Product Specification | |
|---|---|
| OPTICAL LINE | Multi–mode G.651.1 compliant OFNR fiber |

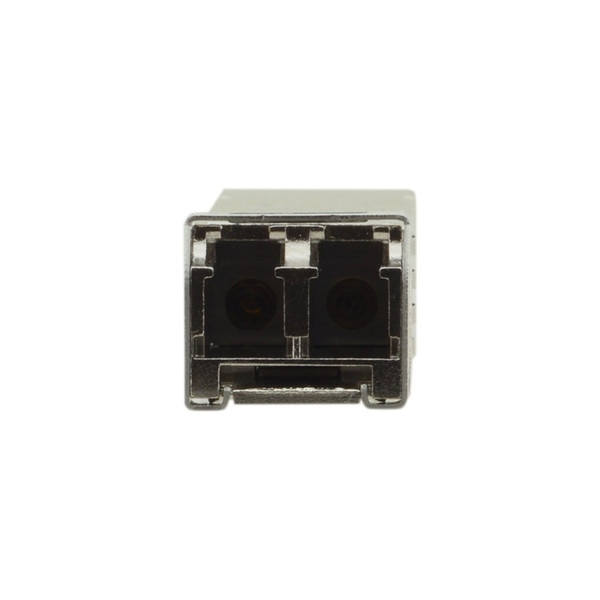

| PORTS | 2–strand simplex fiber optic LC(PC/UPC) connector Note: Do not use with LC(APC) cable connectors |
| MAX. REACH | 3km (1.8 miles) over OM3 MM fiber |
| NOMINAL PEAK WAVELENGTH | 850nm |
| MAX. DATA RATE | 10.2Gbps |
| TRANSMITTER TYPE | VCSEL |
| OPTICAL TYPICAL TRANSMISSION POWER | –2.5dBm |
| OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY | –11.1dBm |
| OPTICAL TYPICAL MAXIMUM LOSS BUDGET | 8.6dB |
| STANDARDS COMPLIANCE | IEEE 802.3ae, SFF–8431 |
| LASER SAFETY COMPLIANCE | Laser Class I |
| REGULATORY CERTIFICATIONS | FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2 |
| POWER CONSUMPTION | 1W |
| OPERATING TEMPERATURE | 0° to 70°C |
| STORAGE TEMPERATURE | –40° to 85°C |
| HUMIDITY | 5% to 95% RH |
| PRODUCT DIMENSIONS | |
| Dimensions (WxDxH) | 1.33cm x 5.70cm x 0.85cm (0.52" x 2.24" x 0.33" ) |
| SHIPPING DIMENSIONS | |
| Dimensions (WxDxH) | 12.60cm x 8.40cm x 4.10cm (4.96" x 3.31" x 1.61" ) |
| SHIPPING WEIGHT | 0.1kg (0.1lbs) approx. |
