Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper

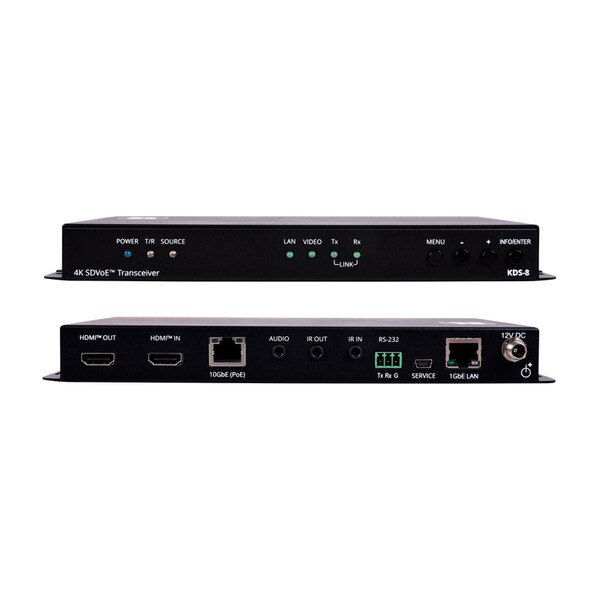

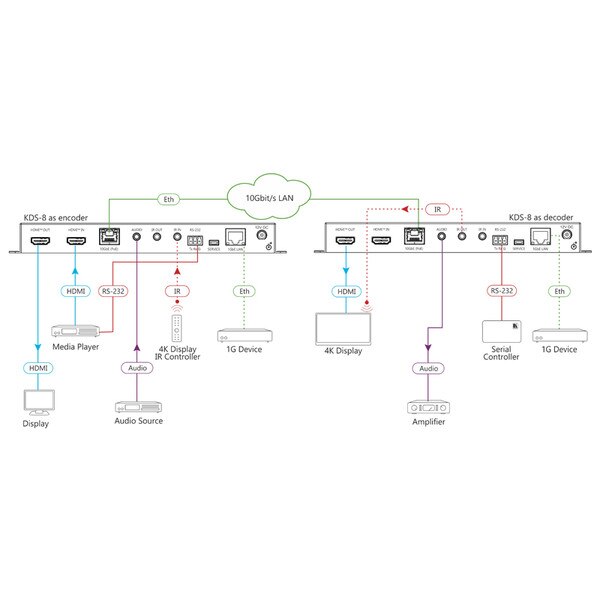

KDS−8 is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over copper cable. KDS−8 can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI input along with IR, RS−232, and analog audio, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Copper
KDS−8 is a high−performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over copper cable. KDS−8 can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI input along with IR, RS−232, and analog audio, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Specifications
| INPUTS | |
|---|---|
| 1 HDMI | On a female HDMI connector |
| 1 IR | On a 3.5mm mini jack. If you want to use the IR extension, it is necessary to order these accessories from Kramer: 3300–500028 PT–5R/T IR receiver cable 2m, 3.5mm mini jack, 3300–500029 PT–5R/T IR emitter cable 2m, and a 3.5mm mini jack |
| OUTPUTS | |
| 1 HDMI | On a female HDMI connector |
| 1 IR | On a 3.5mm mini jack. If you want to use the IR extension, it is necessary to order these accessories from Kramer: 3300–500028 PT–5R/T IR receiver cable 2m, 3.5mm mini jack, 3300–500029 PT–5R/T IR emitter cable 2m, and a 3.5mm mini jack |
| PORTS | |
| 1 10GbE Ethernet | On an R–J45 connector |
| 1 Unbalanced Stereo Audio | On a 3.5mm mini jack |
| 1 1GbE Ethernet | On an R–J45 connector |
| 1 RS-232 | On a 3–pin terminal block connector |
| VIDEO | |
| Standards Compliance | 10/12–bit HDR (Point–to–Point and Genlock mode only), HDCP 2.2 &1.4, DVI 1.0, |
| EXTENSION LINE | |
| Signal Compression | Ultra–light compression, lossless for most content |
| Range | Up to 100m in point–to–point mode |
| AUDIO | |
| Standards Compliance | Supports pass–through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI sources. Analog audio supports 20 Hz~20 kHz, 24–bit 48 kHz sampling rates |
| POWER | |
| Source | 12V DC |
| Consumption | 3A |
| PoE Budget | 25W (not including cable loss) |
| ENVIRONMENTAL CONDITIONS | |
| Operating Temperature | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non–condensing |
| Storage Temperature | –20 to +70°C (–4 to + 158 °F), 10% to 90%, non–condensing |
| Humidity | 10% to 90%, non–condensing |
| PRODUCT DIMENSIONS | |
| Dimensions (WxDxH) | 23.10cm x 11.60cm x 2.50cm (9.09" x 4.57" x 0.98" ) |
| PRODUCT WEIGHT | |
| SHIPPING DIMENSIONS | |
| Dimensions (WxDxH) | 35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) |
| SHIPPING WEIGHT | 1.2kg (2.6lbs) approx. |
