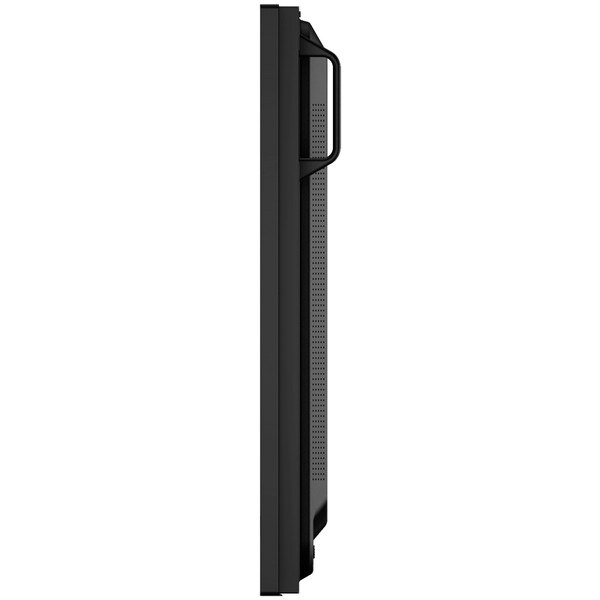

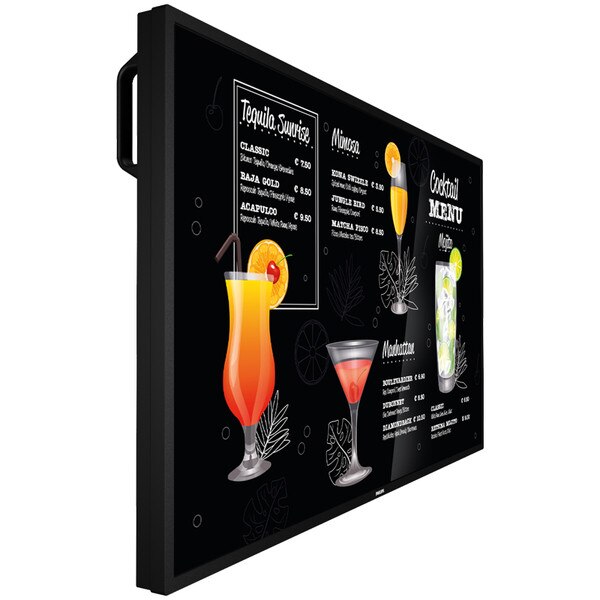

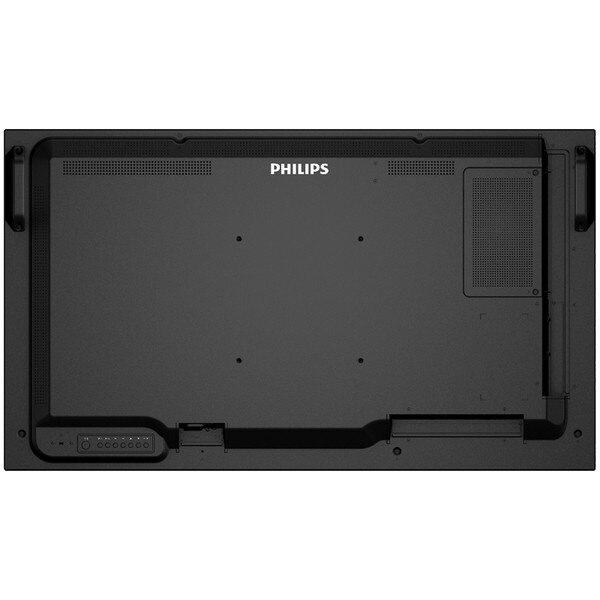

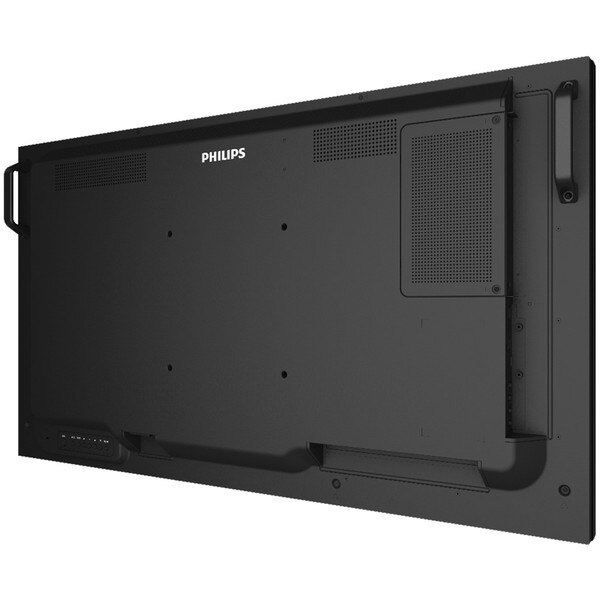

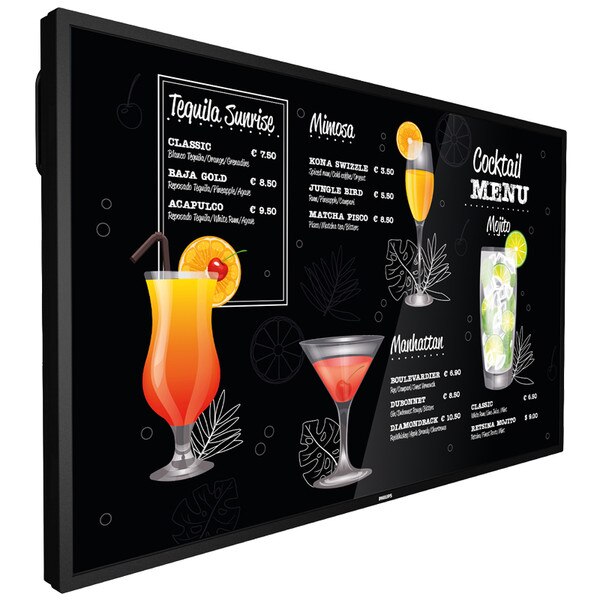

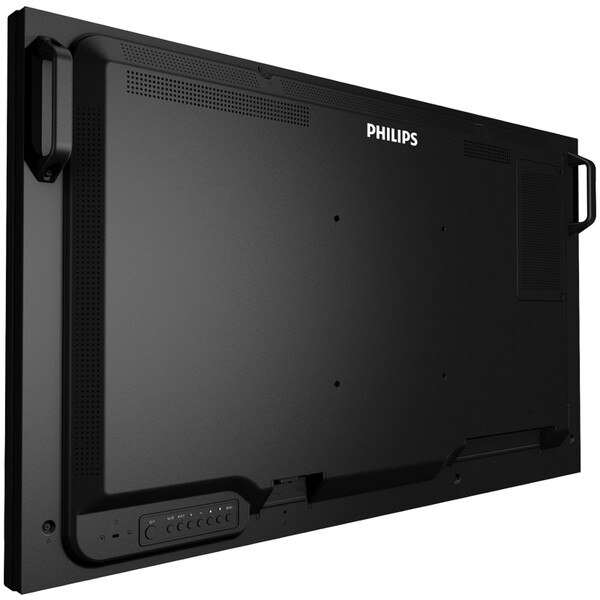

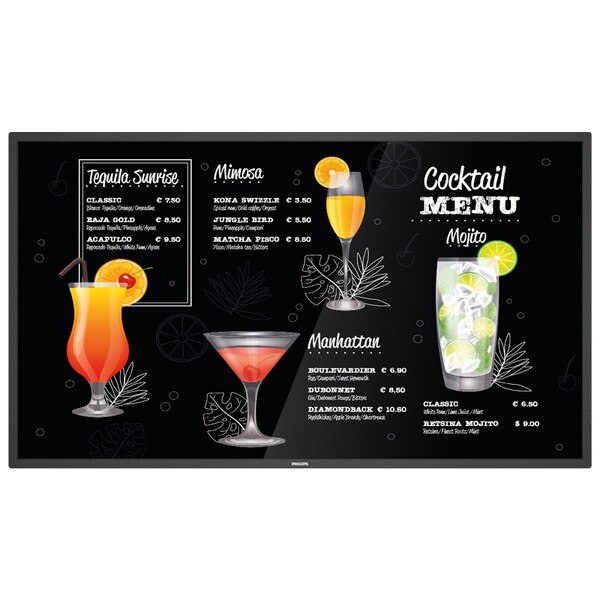

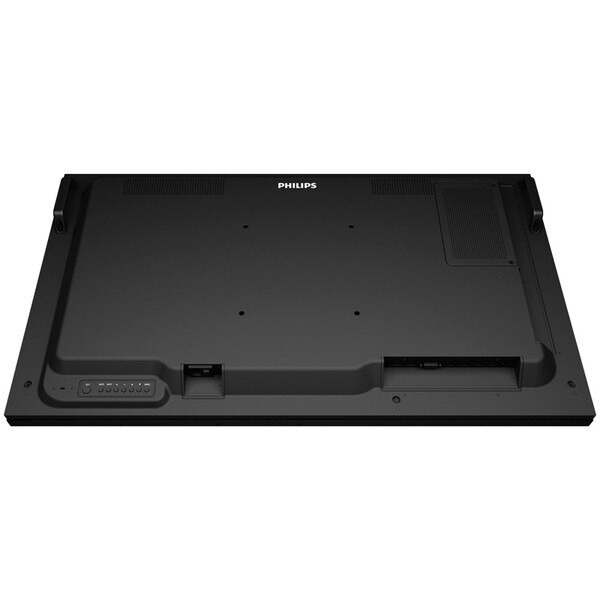

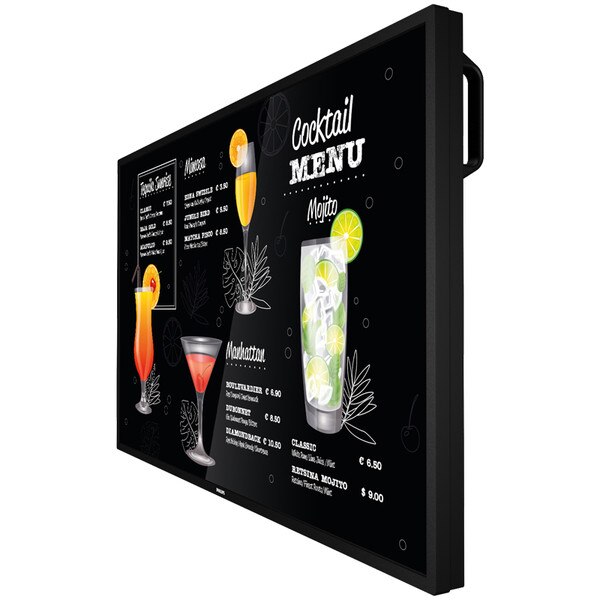

Philips 50" BDL3117P P-Line Display Signage Solutions Display

SKU: 50BDL3117P
$1,910.00
Location Availability
Sydney Call For Availability
Melbourne Call For Availability

Details

Power and flexibility

Brighter content with 24/7 performance.

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.


Effortless setup. Total control.

• Operate, monitor and maintain with CMND & Control


Brilliant picture. Strong build.

• D-image:clinically accurate imaging

• Robust metal housing


Robust system solution

• Energy-saving automatic backlight control

• FailOver ensures content is always playing

• Sophistication and intelligence with SDM-L

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

D-image

This Philips Professional Display is factory-calibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

SDM-L ready

An integrated Intel Smart Display Module Large adds scalable sophistication to your display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.

Specifications

Picture/Display
Diagonal screen size (metric)125.7
Diagonal screen size (inch)49.5
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60 Hz
Brightness750
Dynamic contrast ratio500,000:1
Response time (typical)8
Aspect ratio0.672916667
Viewing angle (horizontal)178
Viewing angle (vertical)178
Pixel pitch0.2854 x 0.2854 mm
Display colours1.07 billion
Panel technologyVA
Contrast ratio (typical)166.6673611
Haze0.25
Supported Display Resolution
Computer formats640 x 480, 60, 67, 72, 75 Hz
720 x 400, 70 Hz
800 x 600, 56, 60, 72, 75 Hz
1024 x 768, 60, 70, 75 Hz
1152 x 864, 75 Hz
1152 x 870, 75 Hz
1280 x 720, 60 Hz
1280 x 800, 60 Hz
1280 x 1024, 60 Hz
1440 x 900, 60 Hz
1600 x 1200, 60 Hz
1680 x 1050, 60 Hz
1920 x 1080, 60 Hz
Video formats480p, 60 Hz
576p, 50 Hz
720p, 50, 60 Hz
1080i, 50, 60 Hz
1080p, 50, 60 Hz
3840 x 2160, 30Hz
3840 x 2160, 60 Hz
Video inputDisplay Port1.2 (x 1)
DVI-I (x 1)
USB 2.0 (x 1)
HDMI 2.0 (x 3)
Audio input3.5 mm jack
Video outputDisplayPort 1.2 (x 1)
HDMI 2.0 (x 1)
Audio output3.5 mm jack
External controlIR (in/out) 3.5 mm jack
RJ45
RS232C (in/out) 2.5 mm jack
Ambient Light Sensor
Other connectionsMicro SD (x 1)
SDM-L
Thermal sensor
Connectivity
PlacementLandscape (24/7)
Portrait (24/7)
Tiled MatrixUp to 15 x 15
Screen-saving functionsPixel Shift, Low Bright
Signal loop throughDisplayPort
RS232
HDMI
IR Loop through
Ease of installationCarrying Handles
Energy-saving functionsSmart Power
Network controllableRS232
RJ45
Keyboard controlHidden
Lockable
Operating conditions
Temperature range (operation)0 ~ 40
Temperature range (storage)-20 ~ 60
Altitude0 ~ 3000 m
MTBF50000
Humidity range (operation)[RH]20~80% RH (No condensation)
Humidity range (storage) [RH]5~95% RH (No condensation)
Power
Consumption (Typical)110
Consumption (Max)260 W
Standby power consumption<0.5 W
Mains power100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label ClassG
Sound
Built-in speakers2 x 10 W RMS
Accessories
StandBM05922(optional)
Included AccessoriesAC Switch Cover
Philips logo (x 1)
Power cable (x 3)
Quick start guide (x 1)
Remote control and AAA batteries
RS232 cable (3 m) (x 1)
RS232 daisy chain cable (x 1)
USB Cover (x 1)
Wire Clamper (x 3)
Edge Alignment Kit (x 2)
Miscellaneous
On-Screen Display LanguagesArabic
Dutch
Danish
English
French
Finnish
German
Italian
Japanese
Norwegian
Polish
Portuguese
Russian
Spanish
Swedish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvalsCE
FCC, Class A
CB
BSMI
EAC
EMF
VCCI
PSB
ETL
EPA
Warranty3 year warranty
Multimedia Application
USB Playback VideoH.264
Motion JPEG
MPEG1/2
WMV3
USB Playback PictureBMP
JPEG
PNG
USB Playback AudioAAC
MPEG
HEAAC
Dimensions
Set Width1128.4
Set Height649
Set Depth76.8
Set Width (inch)44.43
Set Height (inch)25.55
Set Depth (inch)3.02
Bezel width14.90 mm (Even bezel)
Wall Mount400 x 400 mm, M6
Product weight17.3
Product weight (lb)38.14
