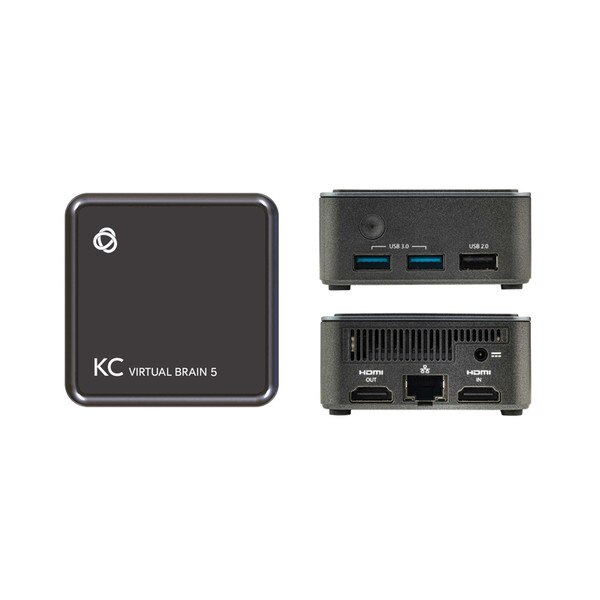

Kramer Hardware Platform with 5 Instances of Kramer BRAINware
Details
Virtual brain 5
KC−Virtual Brain5 is a hardware platform with 5 instances of Kramer BRAINware software already installed on the device. KC−Virtual Brain5 is designed to maximize the features and benefits of Kramer BRAINware for controlling up to 5 standard spaces (e.g. a standard space could include a scaler, monitor, lighting system, touch panel and keypad).
Kramer BRAINware is an enterprise−class, revolutionary, user−friendly, software application that enables you to execute all your room control actions straight from a computer without installing a physical Brain between the user interface and the controlled devices. Using the power of Kramer Control cloud–based control & space management platform, Kramer BRAINware enables you to operate multiple devices over Ethernet such as scalers, video displays, audio amplifiers, Blu−ray players, sensors, screens, shades, door locks, and lights.
Designing a system was never easier, with Kramer Control's intuitive drag & drop Builder. Install, configure and modify your control system without any prior knowledge in programming.
Specifications

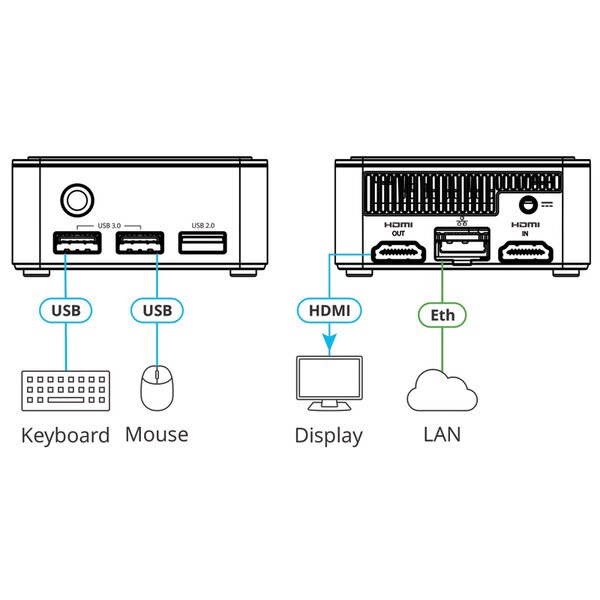

| Ports | |
|---|---|
| 3 USB | On 2 USB 3.0 connectors and 1 USB connector |
| 1 LAN | On an RJ–45 connector |
| Inputs | |
| 1 HDMI | On a female HDMI connector |
| Outputs | |
| 1 HDMI | On a female HDMI connector |
| General | |
| Processor | 4th generation Intel Dual core 1.4GHz |
| Main Memory | 4GB, high speed |
| Storage | 32GB, solid–state drive |
| LAN | Gigabit LAN |
| Power | |
| Source | 12V DC |
| Consumption | 700mA |
| Accessories | |
| Included | Power cord, VESA mounting bracket |
| Environmental Conditions | |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Product Dimensions | 7.30cm x 7.30cm x 3.34cm (2.87" x 2.87" x 1.31" ) W, D, H |
| Product Weight | 0.2kg (0.4lbs) approx. |
| Shipping Dimensions | 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H |
| Shipping Weight | 0.6kg (1.3lbs) approx. |
