Vogels Display Interface Strips Tilt - Black
SKU: PFS3306
Details
PFS 3306
Article number (SKU)
7233060
Colour
Black
Key Benefits
• Modular
• Quick and easy installation
• Theft prevention
• Tilt function in steps
The PFS 3306 interface display strips is part of the modular Connect-it system
With which you can create your own ceiling or floor solution for medium to large sized displays.
The PFS 3306 is suitable for medium to large sized displays up to 80 kg with a max. vertical fitment of 600 mm
.For creating a ceiling solution combine the PFS 3306 with a Connect-it ceiling plate, pole (PUC 25xx Series) and interface bar (PFB 34xx Series). For creating a floor solution combine the PFS 3306 with a Connect-it floor plate/ trolley, pole (PUC 27xx Series) and interface bar (PFB 34xx Series). The PFS 3306 can also be combined with the motorized products (PFFE 7110, PFTE 7112, PFWE 7150).
Specifications
| Specifications | |
|---|---|
| EAN single box | 8.71E+12 |
| Series | Connect-it |
| Product group | Interface strip |
| Colour | Black |
| TÜV certified | Yes |
| Guarantee | 5 years |
| Tilt | Tilt up to 20° |
| Max. weight load (kg) | 80 |
| Min. vertical hole pattern (mm) | 200 |
| Max. vertical hole pattern (mm) | 600 |

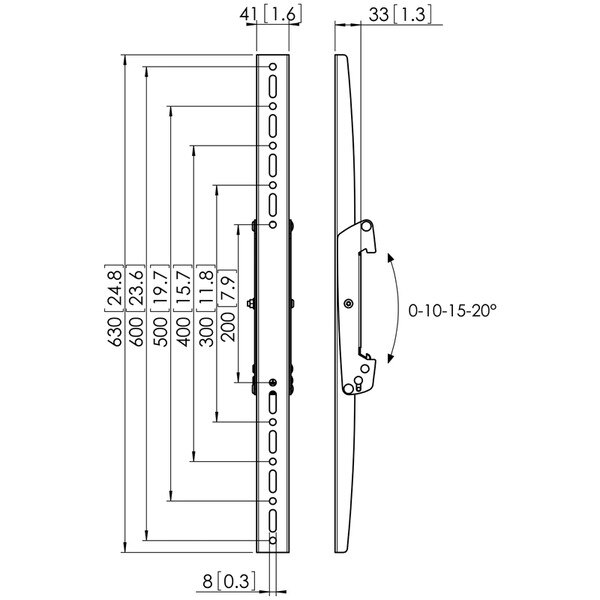

| Length display strips / Max. fitment (mm) | 630 / 600 mm |
