Vogels Pop-Out Display Video Wall Module 37-65 inch - Black
SKU: PFW6870
Details
PFW 6870 Video wall pop-out wall mount
Article number (SKU)
7368700
Colour
Black
Key Benefits

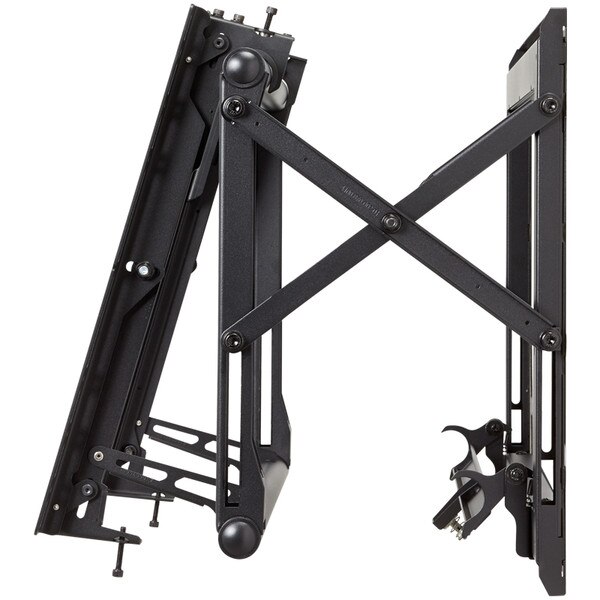

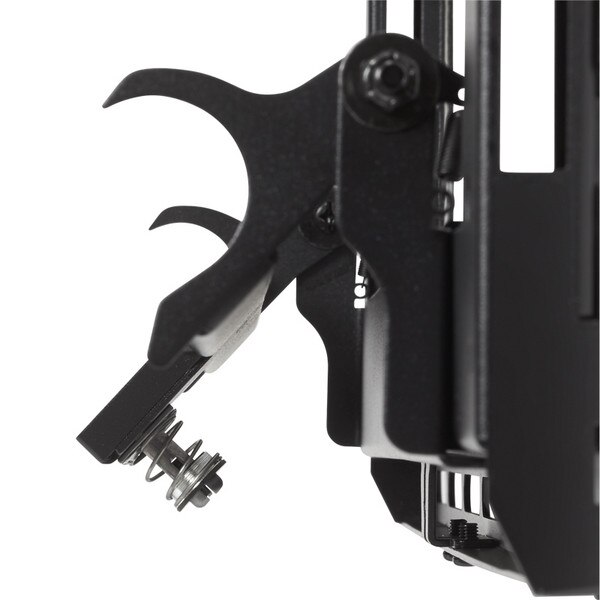

PFW 6870 is a customizable video wall framing system for displays weighing up to 72 kg / 160 lbs. with a mounting pattern of 200 x 200 to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.
Specifications
| Specifications | |
|---|---|
| Product type number | PFW 6870 |
| Article number (SKU) | 7368700 |
| Colour | Black |
| EAN single box | 8712285323461 |
| TÜV certified | Yes |
| Guarantee | 5 years |
| Max. weight load (kg) | 72 |

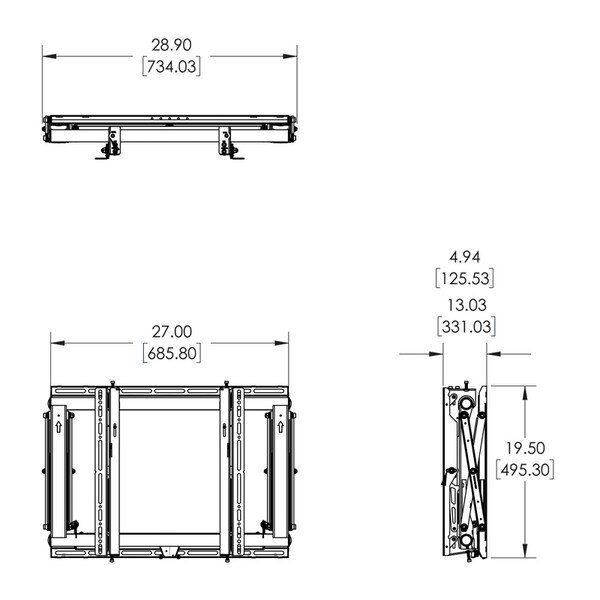

| Max. height of interface (mm) | 495 |
| Max. width of interface (mm) | 734 |
| Levelling function | Post-installation horizontal levelling |
| Max. distance to the wall (mm) 331 | 331 |
| Max. horizontal hole pattern (mm) | 600 |
| Max. screen size (inch) | 65 |
| Max. vertical hole pattern (mm) | 400 |
| Min. distance to the wall (mm) | 127 |
| Min. horizontal hole pattern (mm) | 200 |
| Min. screen size (inch) | 37 |
| Min. vertical hole pattern (mm) | 200 |
| Orientation | Landscape |
| Service Position | Yes |
