Ceiling Bracket
Details
Strong, Reliable Ceiling Mount

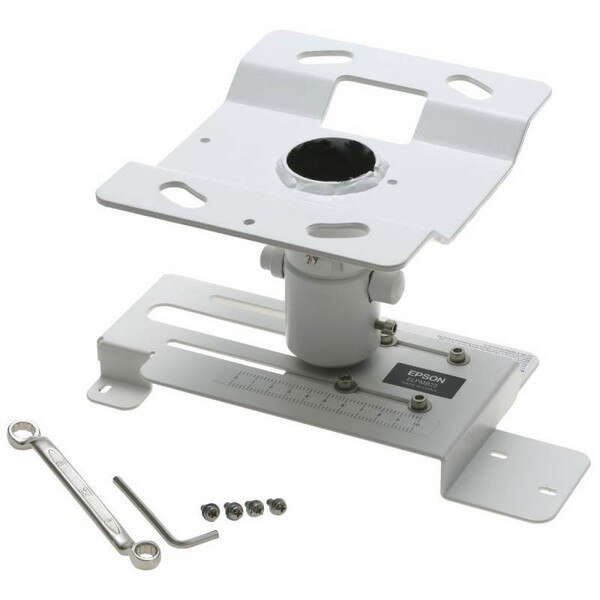

The Epson ELPMB23 is a ceiling mount for small-size Epson projectors. Made from high-grade steel with a powder-coated finish, it's built for strength and reliability with a clean look in any installation.
Ball Joint Angle Adjustment
A ball joint allows 360° horizontal rotation plus ±18° of vertical and sideways tilt, so the projector can be positioned precisely for the screen.
Easy Installation & Alignment
The projector mounts and detaches easily for servicing, and a scale sticker on the projector plate makes it simple to line up the lens centre with the screen, with up to 100mm of horizontal adjustment.
Extension Poles for High Ceilings
For rooms with high ceilings, add the ELPFP13 (668mm to 918mm) or ELPFP14 (918mm to 1,168mm) extension pole, both adjustable in 50mm steps.
Specifications
| General | |
|---|---|
| Product Code | ELPMB23 |
| Epson Part Number | V12H003B23 |
| Product Type | Projector Ceiling Mount |
| Suitable For | Small-size Epson projectors |
| Colour | White |
| Material | High-grade steel, powder-coated finish |
| Adjustment | |
| Horizontal Rotation | 360° |
| Vertical Tilt | ±18° |
| Sideways Tilt | ±18° |
| Lens Centre Horizontal Adjustment | 100mm |
| Compatibility | |
| Optional Extension Poles | ELPFP13 (668mm - 918mm), ELPFP14 (918mm - 1,168mm) |
| Note | ELPPT01 setting plate required for 1700 series projectors (sold separately) |
| Dimensions | |
| Dimensions (W x D x H) | 270 x 139 x 150mm |
| Weight | 3.4kg |
| Installation | |
| Concrete Ceiling Fixing | M12 or larger anchors, bolts and nuts (not included) |
| In the Box | |
| Contents | Ceiling mount, offset wrench, hexagon wrench, 4 x M4 x 12 projector mounting screws with lock washers and plain washers, instruction manual |
