Focal 100 ICW-8-T - White
Details
2-way coaxial speaker
100 ICW8-T is a wall and ceiling loudspeaker designed for large public spaces (hotels, restaurants, shops). Its 21 cm driver features Polyglass technology for a natural, rich sound, and its low directivity eliminates the "shower effect" of sound for a homogeneous musicality in the space. Like all products in the 100-T Series line, it incorporates an adjustable transformer to adapt its power to 70/100 volt installations.
Vast Spaces
An adjustable transformer adapts the loudspeaker's power output, allowing it to be daisy-chained to other loudspeakers in an installation. Clarity and vocal intelligibility are guaranteed in large listening spaces, while minimizing the number of amplification channels.
Focal Know-How

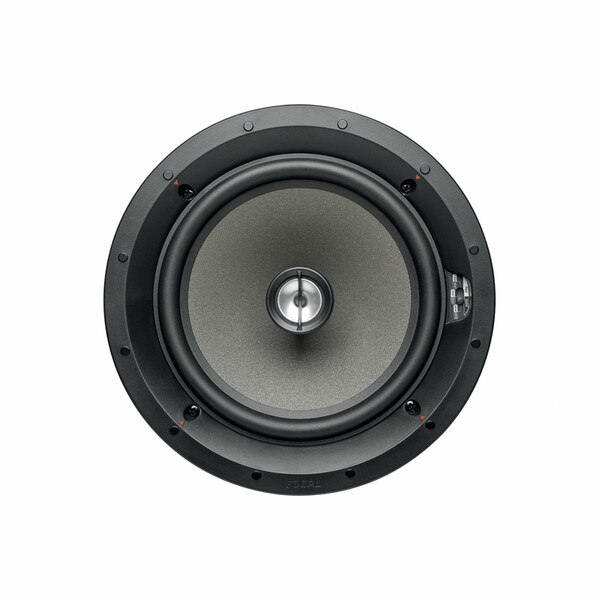

The Polyglass diaphragm of the 21 cm loudspeaker delivers a natural, uncolored midrange and rich bass. It is combined with an aluminum inverted dome tweeter for silky treble and optimum sound dispersion.
Compact and Discreet

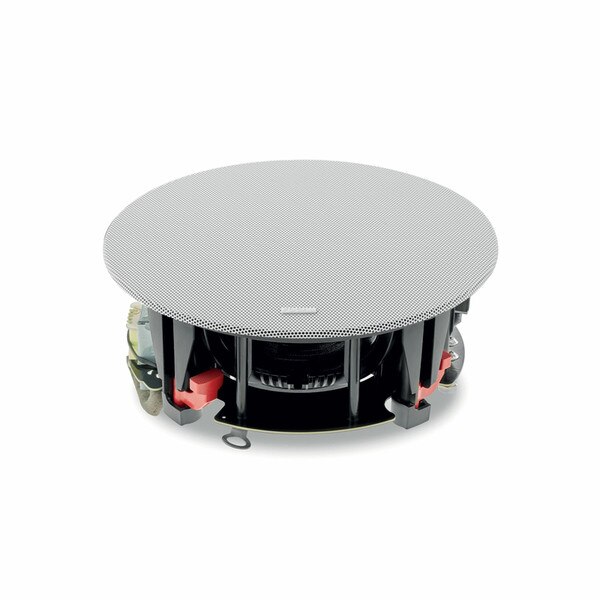

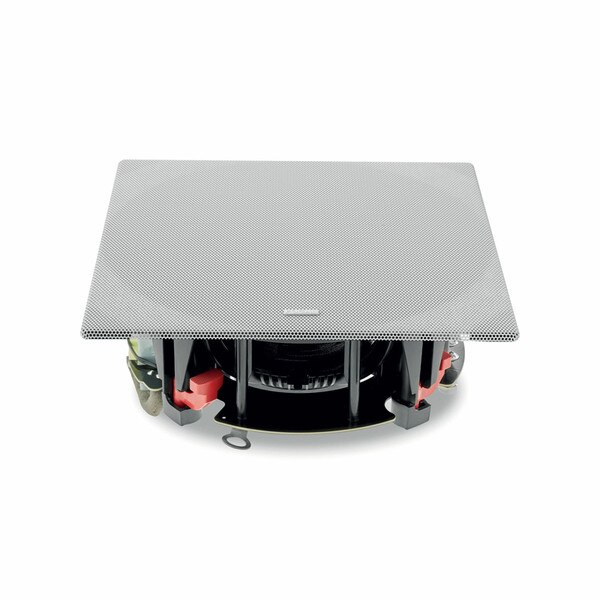

Compactness and shallow integration depth are the hallmarks of these In-ceiling loudspeakers. Discreet and easy to install, they come with optimized grip mounting brackets and ready-to-paint round or square grilles.
Specifications
| Type | In-wall/In-celling - 2-way coaxial for 100V/70V line installation |
|---|---|
| Drivers | 8" (21cm) Polyglass Midbass 1" (25mm) AIuminium inverted dome Tweeter |
| Sensitivity (2.83V/1m) | 90dB |
| Frequency response (+/-3dB) | 53Hz - 23kHZ |
| Low frequency point (-6dB) | 40Hz |
| Power in 70V | 7.5/15/30W |
| Power in 100V | 15/30/60W |
| External dimensions (Ø/Depth) | 93/4x43/8" (248x111mm) |
| Cut-Out diameter | 813/16" (224mm) |
| Depth from wall | 41/4" (107mm) |
| Net weight (with front grille) | 5lbs (2.3kg) |
| Packing dimensions (WxDxH) | 123/16x123/16x71/4" (310x310x185mm) |
| Total weight (with packaging) | 8lbs (3.6kg) |
