Focal 100 Series IC6ST 2 Way Coaxial Ceiling Speaker
Details
100 IC6ST

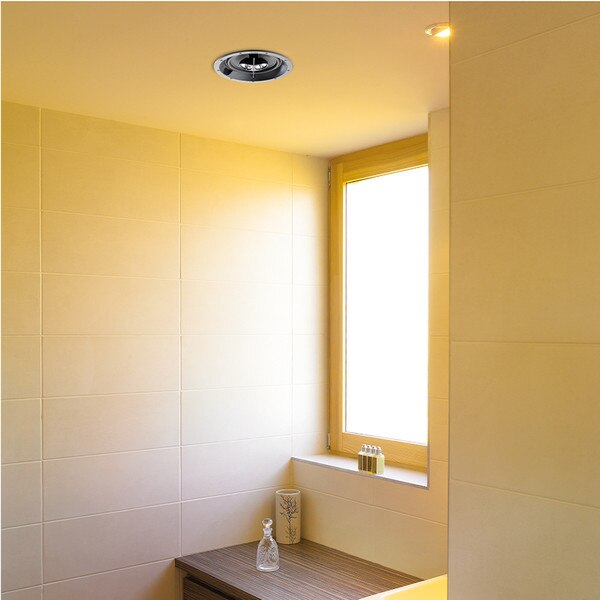

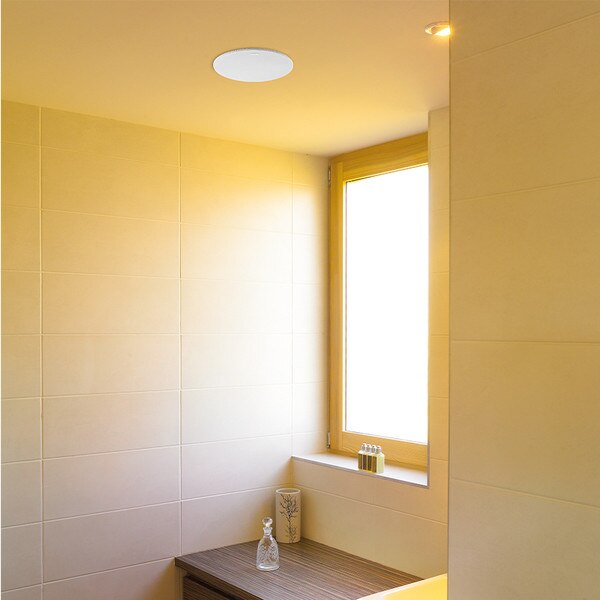

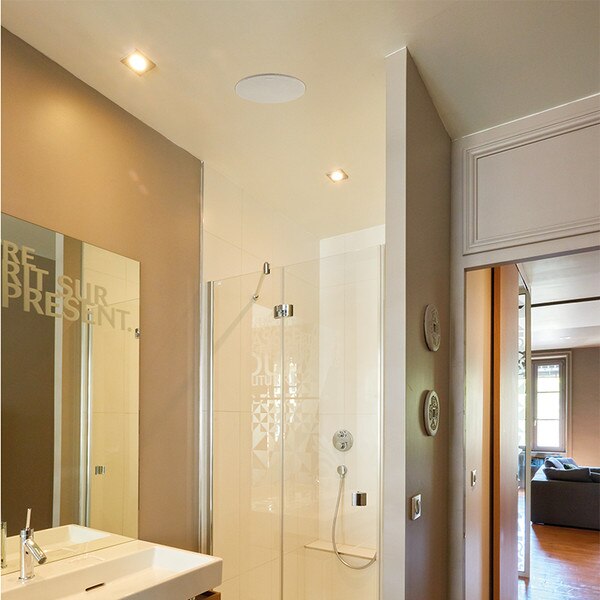

Dedicated to residential installations, the IC6ST 100 ceiling speaker stands out for its sonic performance and compactness. Thanks to its double tweeter, it's ideal for stereo sound in small to medium-sized rooms (bedrooms, kitchens, hallways) or humid environments (bathrooms), thanks to its tropicalization process. All in all, a highly effective piece of equipment at this price level.
Performance

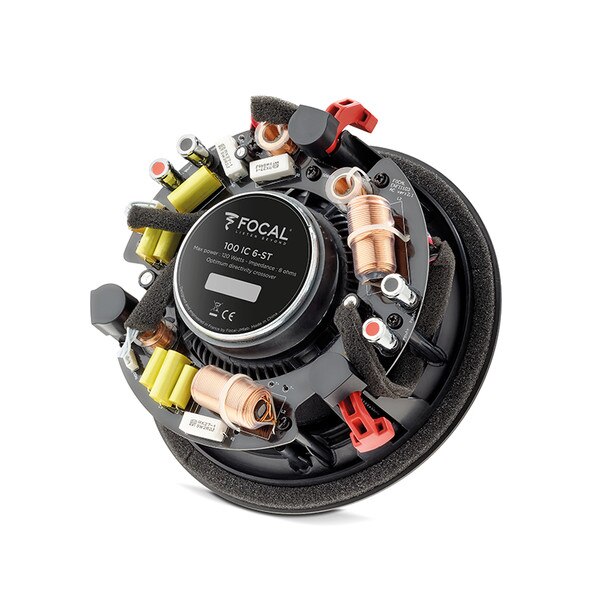

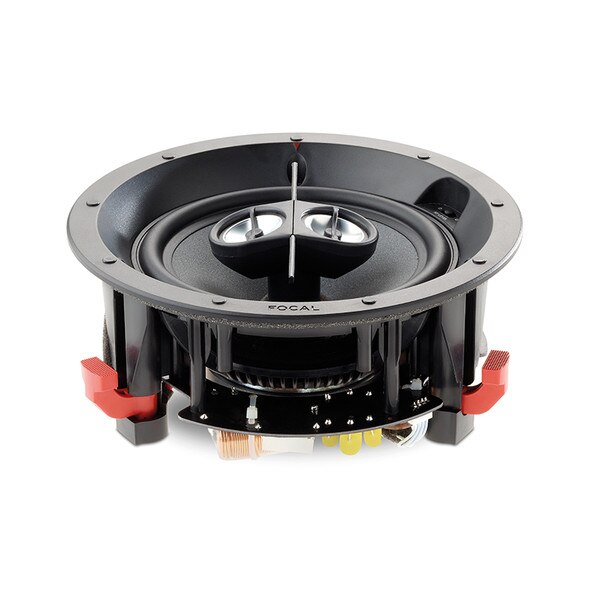

The loudspeaker features a compact, directional tweeter and a Polyglass cone driver. A crossover facilitates off-axis listening and reduces the "shower effect".
Hi-Fi or Home Cinema
100 IC6ST features a 3-position treble equalizer to match room acoustics. It can be connected to a single amplifier and used with conventional hi-fi systems for Home Cinema installation.
Easy Installation

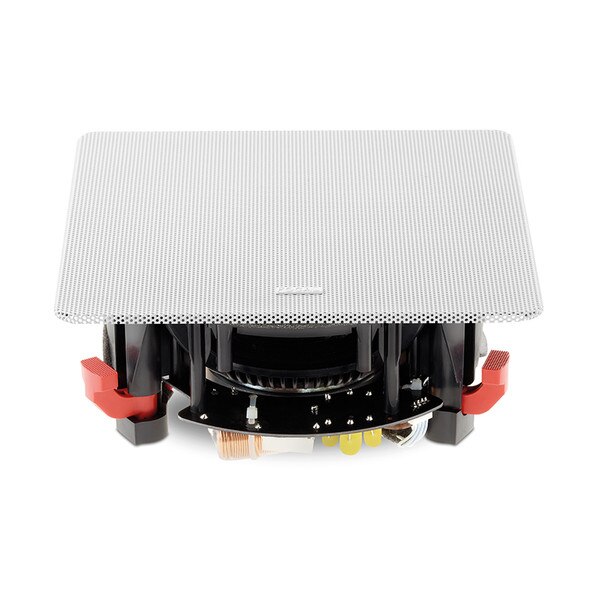

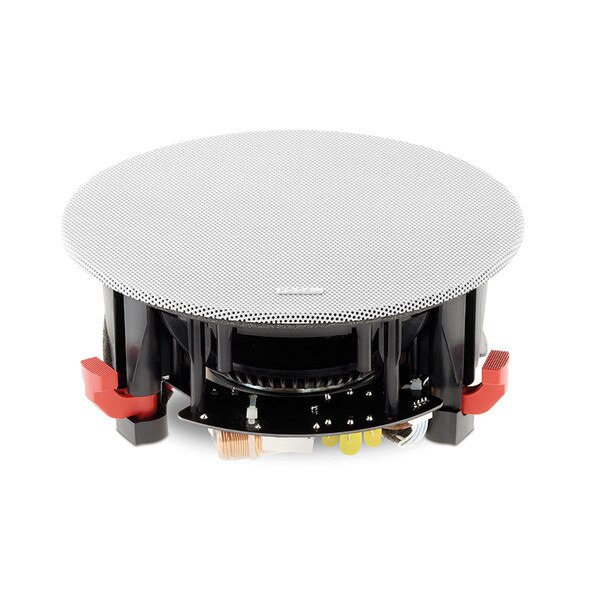

Simplicity of installation and design are key criteria: robust mounting brackets and magnetic grilles reduce installation time. The shallow depth of 100 Series products ensures discreet integration.
Specifications
| Type | In-celling - Stereo 2-way coaxial |
|---|---|
| Drivers | 61/2" (16.5cm) Dual voice coil Polyglass Midbass 2 x 1" (25mm) AI inverted dome Tweeters |
| Sensitivity (2.83V/1m) | 89dB |
| Frequency response (+/-3dB) | 60Hz-23kHz |
| Low frequency point (-6dB) | 48Hz |
| Nominal impedance | 2 x 8Ώ |
| Minimal impedance | 2 x 6.7Ώ |
| Recommended amplifier power | 25-100W |
| External dimensions (Ø/Depth) | 83/16"x33/4" (208x95mm) |
| Cut-Out diameter | 71/4" (184mm) |
| Depth from wall | 39/16" (91mm) |
| Net weight (with front grille) | 3.86lbs (1.75kg) |
| Packing dimensions (WxDxH) | 105/8"x105/8"x611/16" (270x270x170mm) |
| Total weight (with packaging) | 5.29lbs (2.40kg) |
