Focal Astral 16 - Black
Details
Audio-Video Processor And Amplifier
A true orchestra conductor, the Astral 16 multiroom processor and amplifier brings out the best in high-fidelity and integrated speakers, perfectly coordinating an audio-video system within a sensational home theater installation. It offers some of the most advanced features on the market and unrivalled sound quality, for an immersive movie experience.
Multiple Connections
Astral 16 integrates a Pascal Audio Class D amplifier and features 16 channels, 12 of which are self-powered and 4 pre-amplified (balanced XLR outputs) and dedicated to audio (filtering, equalization, bass management).
Polyvalence
The result of a partnership with StormAudio (Immersive Audio Technologies), a French specialist in very high-end audio-video electronics, Astral 16 supports all audio formats: Dolby Atmos, DTS:X, Auro-3D.
Customized Settings

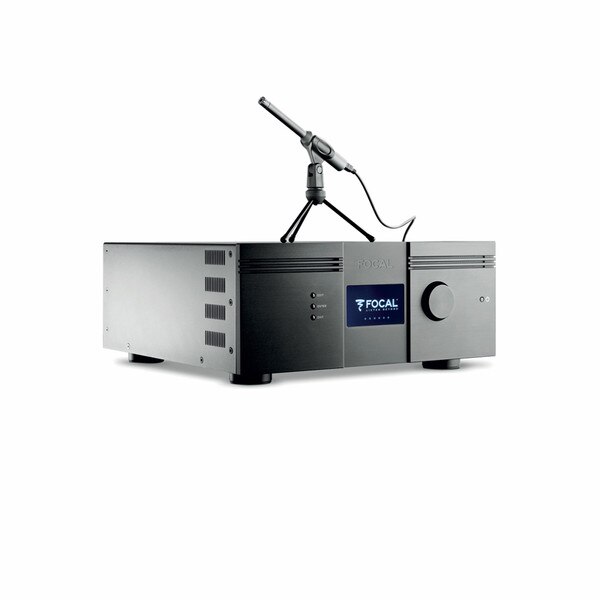

Astral 16 can be adjusted to suit the listening room, thanks to room calibration technology (with Dirac Live) and a measuring microphone. Compatible with Control4, Crestron, Elan, Savant and RTI, it also benefits from these interfaces for remote system control.
Unlimited Configuration
From an app on the App Store and via iPad, configure the system of your choice by room. Technical support (remote monitoring) provides a diagnosis of your equipment at any time.
Specifications
| Type | 16 channel audio-video processor and amplifier |
|---|---|
| Main features | Compatible formats |
| "Remote Monitoring" fonction | |
| Multichannel / Surround Processing | |
| Output channels Decoding / upmixing channels Input sampling rate supported Stereo downmix Bass management Multi-subwoofer channels Multi-way crossover 20 Parametric EQ per channel | 16 up to 16 channels up to 192kHz fully flexible Unlimited (6-12-18-24-36-48dB/oct filter slopes) |
| HDMI | |
| HDMI outputs (mirror) Supported video format High Dynamic Range Color Space and Subsampling Deep Color Max resolution supported HDMI | 7: HDMI 2.0 / HDCP 2.2 1: HDMI 2.0 / HDCP 2.2 (with eARC) 2: HDMI 2.0 / HDCP 2.2 Up to 4K UHD HDR10 / HLG 4:4:4, 4:2:2, 4:2:0 12 bpc 4K 60fps 4:4:4 8bpc 3D / 4K / eARC |
| Audio Inputs | |
| Digital input Analog stereo inputs | 3 x coaxial, 3 x optical 4 x RCA inputs |
| Amplified Audio Outputs | |
| Amplified main outputs Analog main outputs, balanced Stereo downmix outputs, balanced Technology Amplified channels Continuous power output, per channel, à 0.1%THD 3 channels driven simultaneous, 6 channels driven simultaneous, 12 channels driven simultaneous | 12 4 x XLR 2 x XLR Class D 12 8Ω / 4Ω / 2.7Ω 200W / 400W / 650W 200W / 350W / 350W 200W / 300W |
| Continuous power output, per channel, à 1%THD 3 channels driven simultaneous, 6 channels driven simultaneous, 12 channels driven simultaneous, SNR (P-rated) THD (from 1W to P-rated -1dB) | 8Ω / 4Ω / 2.7Ω 250W / 500W / 725W 250W / 500W / 500W 250W / 300W 110dB <0.03% |
| Set-Up Management | Configurable multi-theater management Configurable audio zones management Unlimited Theater and audio zones listening presets Backup and restore of set-up Firmware update via USB/network |
| Control Inputs / Outputs | |
| USB type A Ethernet Output trigger control IR remote ports, in/out | 2 4 (out) 1 / 1 |
| Control / Custom Installation | |
| Web-based product configurator TCP/IP API based control Focal Remote iPad control application Home automation Front panel display | Crestron, Control4, Savant, RTI home automation TFT 4.3" |
| Power Supply | |
| Voltage range Type Range selection | 100V to 240V SMPS Universal |
| Supplied with | Calibrated measurement microphone and tripod, Dirac Live license, 32.9ft (10m) cable with infra-red captor, mounting kit. |
| Dimensions & weight | |
| Net weight – with stands (kg/lbs) Net weight – with accessories for Rack (kg/lbs) Dimensions with stands (h x w x d) (cm/inches) | 20.0 / 44.1 23.0 / 50.7 19.10 x 47.90 x 49 / 7.52 x 18.86 x 19.29 |
