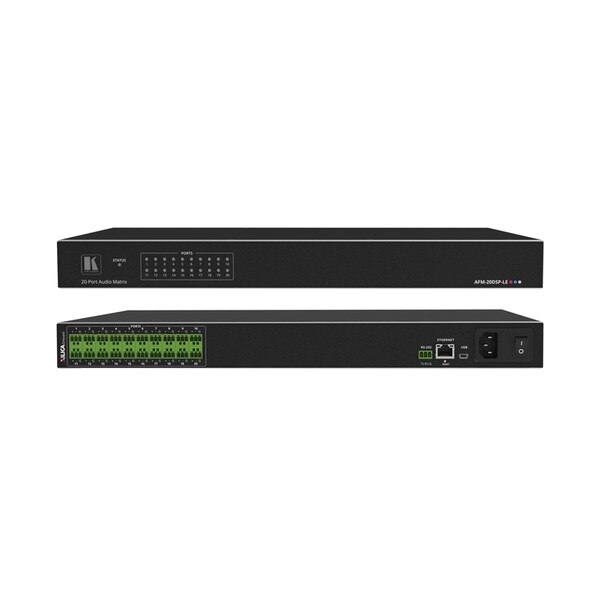

Kramer 20–Port Audio Matrix with DSP and Interchangeable Inputs & Outputs — Lite Edition
SKU: AFM-20DSP-LE
Details
20–Port Audio Matrix with DSP and Interchangeable Inputs & Outputs — Lite Edition
AFM−20DSP−LE is a member of the Kramer XSPerience family of DSP products. AFM−20DSP−LE is an advanced, professional audio matrix switcher with 20 analog ports that can be configured as inputs or outputs according to preset I/O configurations. AFM−20DSP−LE includes multi−channel DSP and a comprehensive and user−friendly graphic interface that makes configuring every detail of your audio system intuitive and easy.
Specifications
| Product Specification | |
|---|---|
| I/O | 20 Balanced Mono Audio: On 3–pin terminal blocks |
| Ports | |
| 1 Usb | On a female mini USB–A connector |
| 1 Rs-232 | On a 3–pin terminal block |
| 1 Ethernet | On an RJ–45 female connector |
| User Interface | |
| Front Panel Leds | 1 status, 20 analog audio ports |
| Control Rs-232 | |
| Baud Rate | 115200 |
| Supported Web Browsers | |
| Windows | Chrome |
| Power | |
| Consumption | 340mA |
| Source | 100–240V AC 50/60Hz |
| Environmental Conditions | |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Regulatory Compliance (Standards Compliance) | |
| Safety | CE |
| Environmental | RoHs, WEEE |
| Enclosure | |
| Size | 19” 1U |
| Type | Aluminum |
| Cooling | Fans |
| Accessories | |
| Included | Power cord |
| Product Dimensions | |
| Dimensions (WxDxH) | 43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) |
| Product Weight | |
| Shipping Dimensions | |
| Dimensions (WxDxH) | 52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) |
| Shipping Weight | |
