Kramer 6.5–Inch, 2–Way Open–Back Ceiling Speakers
SKU: GALIL-6-CO(PAIR)
_01.jpg?resizeid=3&resizeh=600&resizew=600)
Details
6.5–Inch, 2–Way Open–Back Ceiling Speakers

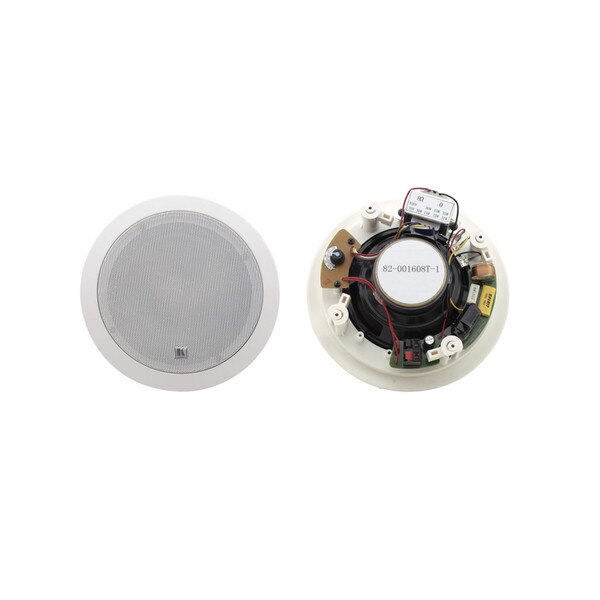

The Galil 6−CO is a pair of two−way open−back 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi−tap power transformer for selecting direct 8Ω (bypassing the transformer) or 70V/100V power settings suitable for array installation.
Specifications
| Product Specification | |
|---|---|
| High Frequency Driver | 0.5" Mylar dome tweeter |
| Description | 2–way open–back ceiling speakers |
| Low Frequency Driver | 6.5” polypropylene cone with rubber surround woofer |
| Impedance | 8Ω |
| Dispersion Coverage | 120° @2kHz |
| Crossover Frequency | 3kHz |
| Nominal Sensitivity | 87dB SPL @1m, 1W |
| Coverage Angle | 104° |
| Directivity Factor (Q) | 8.5 (averaged 100Hz to 10kHz) |
| Directivity Index (Di) | 9.2dB (averaged 100Hz to 10kHz) |
| Frequency Response | 60Hz to 20kHz |
| Input Power | 30W RMS, 80W continuous program |
| Transformer | 70V — 3.7W/7.5W/15W/30W 100V — 7.5W/15W/30W |
| Recommended Amplifier Power | 30W |
| Input Connector | Spring–type push terminal block |
| Weight Per Single Speaker | 1.55kg (3.41lbs) approx |
| Shipping Weight (For Pair) | 4.05kg (8.91lbs) approx |
| Dimensions (Od) | 23cm (9.06") |
| Cutout Diameter | 19.5cm (7.68") |
| Mount Depth | 7.5cm (2.95") |
| Optional | SKIC–6 installation bracket |
