Kramer 840H x lHDMI Video Test Pattern Generator
SKU: 840HXL
Details
840HxlHDMI Video Test Pattern Generator
The 840Hxl is a high performance HDMI video test pattern generator. It generates 32 preset patterns at 16 popular computer, HD and seven user−defined resolutions. It includes several unique patterns that incorporate motion.
Specifications
| Output | |
|---|---|
| OUTPUT | 1 HDMI connector |
| OUTPUT RESOLUTIONS | VGA 640 x 480 @60Hz, 720 x 480 @60Hz, SVGA 800 x 600 @60Hz, XGA 1024 x 768 @60Hz, 1280 x 720 @60Hz, 1360 x 768 @60Hz, 1440 x 900 @60Hz, SXGA+ 1400 x 1050 @60Hz, SXGA 1280 x 1024 @60Hz, WSXGA+ 1680 x 1050 @60Hz, SXGA 1280 x 1024 @75Hz, HD 1080 1920 x 1080 @60Hz, WUXGA 1920 x 1200 @60Hz, UXGA 1600 x 1200 @60Hz, 720 x 480i @60Hz, HD 1080 1920 x 1080i @60Hz, 1440 x 576i @50Hz, 1280 x 720 @50Hz, 1280 x 720 @60Hz, 1280 x 720 @100Hz, 1280 x 720 @120Hz, 1440 x 288 @50Hz, 1440 x 480 @60Hz, 2880 x 240 @60Hz, 2880 x 288 @50Hz, 2880 x 480 @60Hz, 2880 x 480i @60Hz, 2880 x 576 @50Hz, 2880 x 576i @50Hz, 1920 x 1080 @25Hz, 1920 x 1080 @30Hz, 1920 x 1080 @50Hz, Output Native Resolution 1920 x 1080i @50Hz. User defined resolutions: 1440 x 576i @50Hz (default), 640 x 480 @60Hz (default), 720 x 480 @60Hz (default), 1280 x 720 @60Hz (default), 1920 x 1080i @60Hz (default), 1440 x 480i @60Hz (default), 1440 x 240 @60Hz (default) |

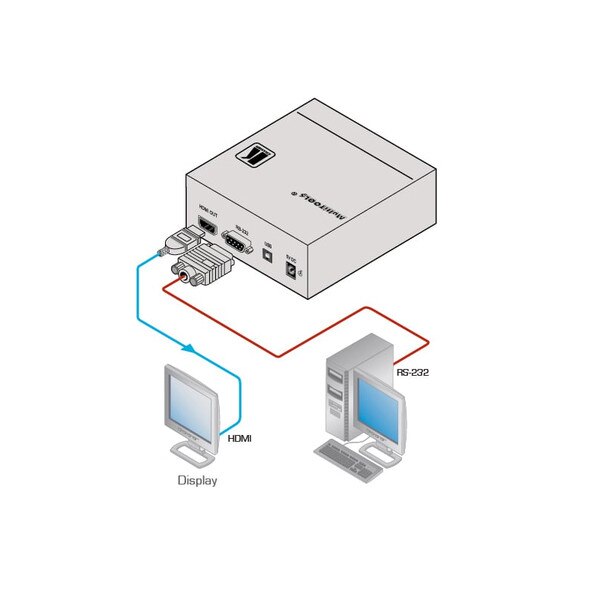

| CONTROL | Five dual–function and two single function front panel buttons, remote control via USB or RS–232 on a 9–pin D–sub connector |
| POWER CONSUMPTION | 5V DC, 460mA |
| OPERATING TEMPERATURE | 0° to +40°C (32° to 104°F) |
| STORAGE TEMPERATURE | –40° to +70°C (–40° to 158°F) |
| HUMIDITY | 10% to 90%, RHL non–condensing |
| INCLUDED ACCESSORIES | Power supply |
| PRODUCT DIMENSIONS | |
| Dimensions (WxDxH) | 10.68cm x 10.35cm x 4.36cm (4.20" x 4.07" x 1.72" ) |
| PRODUCT WEIGHT | 0.3kg (0.7lbs) approx. |
| SHIPPING DIMENSIONS | |
| Dimensions (WxDxH) | 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) |
| SHIPPING WEIGHT | 0.6kg (1.4lbs) approx. |
