Kramer Hidden In–Wall Speaker
SKU: YARDEN IH-1
Details

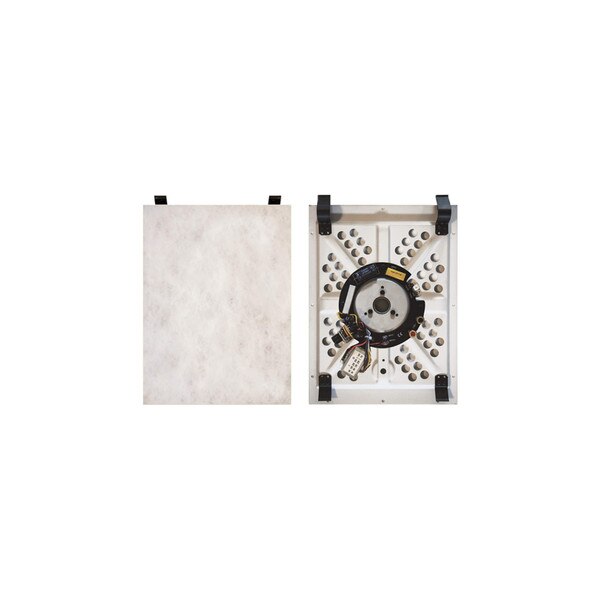

Hidden In–Wall Speaker
The Yarden IH−1 is an open−back speaker designed for mounting invisibly in the wall. It is designed for infinite baffle environments, high−power handling and excellent acoustic performance.
Specifications
| Product Specification | |
|---|---|
| Description | Hidden in–wall speaker |
| Frequency Response | 120Hz to 20kHz @±3dB |
| Drive Units | Polypropylene 1.34mm flat membrane, 2” voice coil, double magnet Neodymium motor |
| Voice Coil Diameter | 50mm |
| Voice Coil Wire | Hexatech aluminum |
| Impedance | 8Ω (transformer tap in off position) |
| Transformer Taps | 70V–25W/12W/6W/3W/Off (Lo–Z), 100V–50W/25W/12W/6W/Off (Lo–Z) |
| Sensitivity | 83dB SPL, 1W@1m |
| Max Spl | |
| Continuous | 97dB |
| Peak | 100dB |
| Power Handling | 90W (40W RMS) |
| Crossover Frequency | 6dB — 120Hz high pass |
| Resonance Frequency | 95Hz |
| Input Connector | Terminal block |
| Materials | Steel body |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Installation Clearance | |
| Mounting Depth | 5.7cm (2.2”) |
| Options | Kramer BC–2S speaker cable |
| Color | White |
