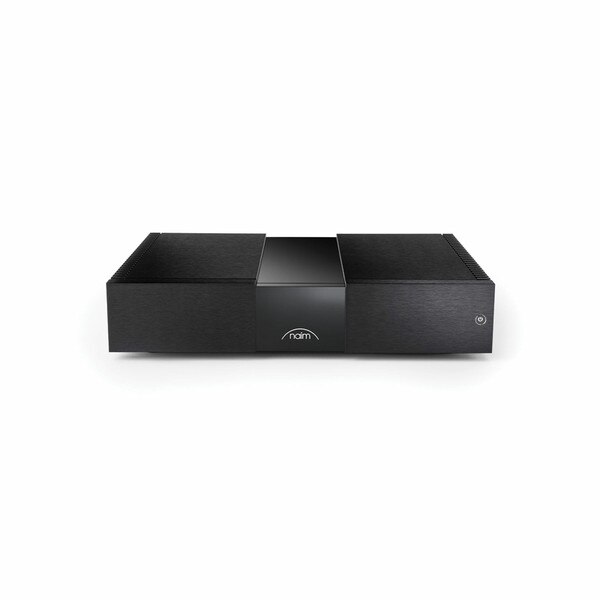

Naim NAP 350 Power Amplifier
Details
Power Amplifier
Drive large and demanding loudspeakers with a pair of NAP 350s. Designed to effortlessly capture the true dynamics of music; this highly dynamic amplifier offers a precise musical performance.
Precision and Speed
The NAP 350 delivers high power with precision and speed. Our engineers have developed specific electronic circuits to give the New Classic products superior performance. The NAP 350 has a new high-current output stage that uses matched pairs of Statement's NA009 custom power transistors. Combined with our acclaimed DR technology, it guarantees a stable and low-noise power supply.
A Timeless Design
The NAP 350 combines a sleek design and premium materials such as highly thermally conductive aluminium alloy heatsinks. At Naim, we pride ourselves in the clear-cut design of our products; we avoid any unnecessary embellishment that would detract from the performance and sound quality of our products.
Perfect Integration
NAP 350 combines perfectly with the NSS 333 streamer and the NAC 332 preamplifier, creating a complete system. The NAP 350 is a pure class-AB linear amplifier, running from fully regulated DR power supplies, producing 175W into 8 ohms and 345W into 4 ohms. It can deliver a peak power of up to 1.7kW to drive impedance dips of complex speaker crossover networks. The input is via a balanced XLR socket, facilitating industry-wide compatibility.
Aluminium Casing
Our founder, Julian Vereker, immediately understood the many benefits of aluminium for wrapping Naim electronic components. He knew that delicate audio components are very sensitive to the effects of magnetic fields, unstable temperatures, and unwanted vibrations.
Specifications
| Type | Amplifier |
|---|---|
| Power output | 175 Watts 8Ω @0.1% THD+N (195W @1%) 345 Watts 4Ω @1% THD+N |
| Gain | +29dB |
| Inputs | 1 x 47kΩ True balanced via XLR 1 x 34kΩ singled ended via legacy adaptor lead |
| Frequency response | -3dB @ 1.4Hz to 100kHz |
| Burst power 2Ω (1kHz for 20mS, repeat 500mS IHF) | 610 Watts 2Ω @1% THD+N |
| Peak current into 1Ω (1kHz 1mS) | +/-42 amps peak (1.7kW peak power) |
| THD+N at 2/3rds full power 8Ω @1kHz | 0.0006 percent |
| Input signal for clipping | 1.33V RMS |
| Signal to noise ratio ref 1W 8Ω A-weighted | 91dB |
| Signal to noise ratio ref 175W 8Ω A-weighted | 114dB |
| Cross talk | NA (mono) |
| Damping factor into 8Ω | 36 |
| Passive consumption | 24W (idle) |
| Standby consumption | <0.5W |
| Mains supply | 115V or 230V, 50/60Hz |
| Dimensions (HxWxD) | 35/8x17x121/2" (9.15x43.2x31.75cm) |
| Weight | 36.38lbs (16.5kg) |
