Naim ND5 XS 2 Streamer
Details
Streamer
The ND5 XS2 is a versatile player with innovative streaming technology, including high-res UPnP streaming, AirPlay, Chromecast, Bluetooth, Spotify Connect, TIDAL, Qobuz, Roon compatibility, internet radio, and multiroom streaming. It also has digital and USB inputs. The player benefits from classic Naim engineering, with carefully selected parts, an oversized toroidal transformer, and decoupled PCB boards for natural and engaging sound quality.
Features
This device streams high-quality audio files from different sources and supports various music formats. It has two digital inputs and two optical inputs that support optimal connection to external sources. It features a front-panel USB port, Bluetooth connectivity, and RC5 system integration. It's Roon ready, multiroom and Party Mode compatible, and has an iOS and Android Focal & Naim App.
Technology & Savoir-Faire
The ND5 XS 2 streaming section uses the latest Naim network card with LVDS, decoding all HD audio formats at up to 32 bits/384 kHz or DSD128. The new streaming board allows the DAC clock to control the audio data flow, and the data is oversampled in a SHARC DSP with 40-bit accuracy before being fed to the PCM1791A Burr-Brown digital-to-analogue converter.
Specifications
| Technical Specifications | |
|---|---|
| Audio Format | WAV - up to 32bits/384kHz FLAC and AIFF - up to 24bit/384kHz ALAC (Apple Lossless) - up to 24bit/384kHz MP3 - up to 48kHz/320kbit (16bit) AAC - up to 48kHz/320kbit (16bit) OGG and WMA - up to 48kHz (16bit) DSD - 64 and 128Fs M4A - up to 48kHz/320kbit (16bit) Note: Gapless playback supported on all formats. |
| Product type | Streamer |
| Inputs/Outputs Specifications | |

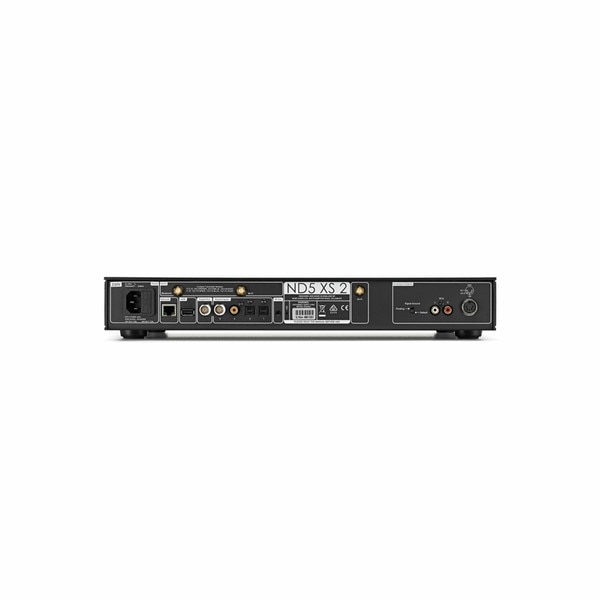

| Analogue outputs | 1 x RCA pair 1 x 5-pin DIN |
| Digital inputs | 2 x optical TOSLink (up to 24bit/96kHz) 1 x coaxial RCA (up to 24bit/192kHz, DoP 64Fs) 1 x coaxial BNC (up to 24bit/192kHz, DoP 64Fs) |
| Digital outputs | 1 x coaxial BNC (up to 24bit/192kHz) |
| USB ports | 2 x USB Type A socket (front and rear - 1.6A charge) |
| Streaming/Sources | |
| WiFi | 2 x Wi-Fi antennae |
| Internet Radio Formats | Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS |
| Internet Radio Provider | Naim Radio |
| Multi-Room | Play several streamers in simultaneously Party Mode: sync up to six Naim streamers and control them via the Focal & Naim app |
| Network | Ethernet (10/100Mbps), Wi-Fi (802.11a/b/g/n/ac), BLE v4.2 |
| Streaming | Apple AirPlay, Bluetooth, Chromecast, Internet Radio, Qobuz, Roon Ready, Spotify Connect, Tidal Connect, UPnP |
| Control | |
| App control | Focal & Naim App |
| Control system | Remote Control |
| Supported mobile operating system | Android, iOS |
| Updates | Update your system by wireless connection via the Focal & Naim application |
| Power Supply | |
| Power consumption in standby mode (deep sleep) | < 0.5W |
| Power consumption in network standby mode | < 2W |
| Consumption in normal use | 20 W |
| Mains cable | PowerLine Lite |
| Mains power supply | 115V or 230V, 50/60Hz |
| Design | |
| Depth | 30.1 cm / 11.8 in |
| Height | 7 cm / 2.75 in |
| Width | 43.2 cm / 17 in |
| Weight | 6.6 kg / 13 lb |
| Compatibility | |
| Upgrade products | NDX 2 |
| Included Accessories | |
| Cables provided | Power-Line Lite |
