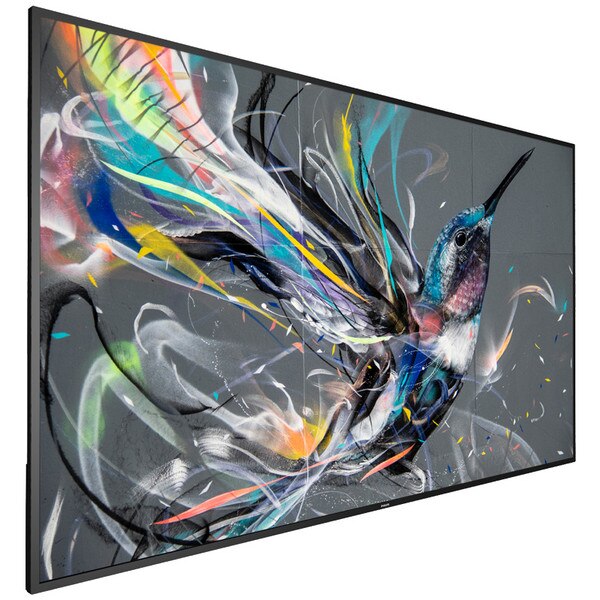

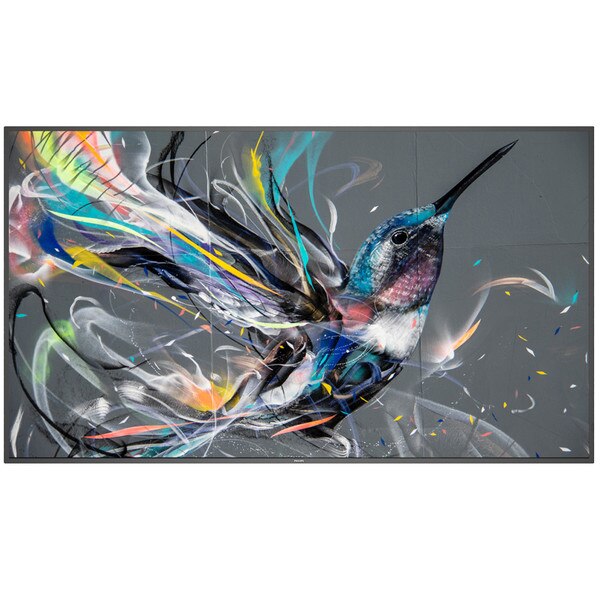

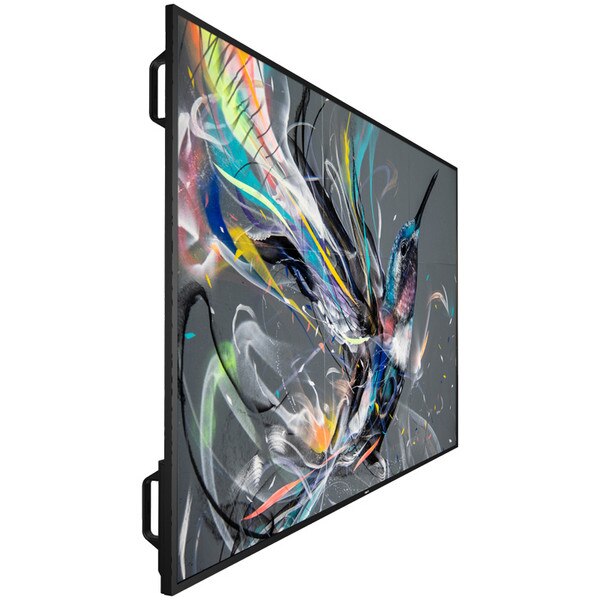

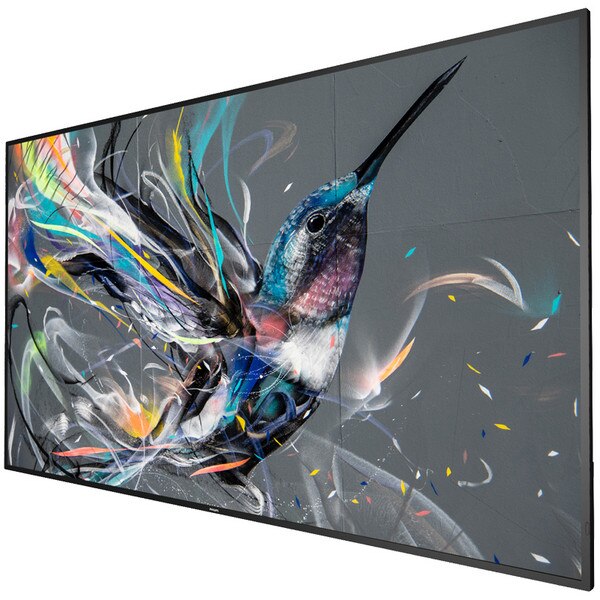

Philips 75" BDL3511Q Q-Line Signage Solutions Display
Details
Stand Out
Easy-setup 18/7 display.
Inform and enthrall with a Philips Q-Line Professional Ultra HD Display. This reliable solution can be up and running as quickly as you need.
• Operate, monitor and maintain with CMND & Control
• OPS slot allows for PC embedding without cabling
• Schedule what you want, when you want with SmartPlayer
Cost-effective system solution
• Energy-saving automatic backlight control
• Integrated media player. Easily schedule USB content
• FailOver ensures content is always playing
• Easy control. Remotely manage networked displays
Superb picture. Ultra-high brightness.
• Ultra-HD. Rich images. Stunning contrast
CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
Integrated media player
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.
OPS slot
Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.
SmartPlayer
Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.
Specifications
| Picture/Display | |
|---|---|
| Diagonal screen size | 74.5 inch / 189.3 cm |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 400 cd/m² |
| Dynamic contrast ratio | 500000:1 |
| Response time (typical) | 8 ms |
| Aspect ratio | 16:09 |
| Viewing angle (H / V) | 178 / 178 degree |
| Pixel pitch | 0.4296 x 0.4296 mm |
| Display colors | 1.07 Billion |
| Panel technology | IPS |
| Contrast ratio (typical) | 1200:01:00 |
| Clinical image | D-Image preset (dicom part 14 compatible) |
| Haze | 0.01 |
| Supported Display Resolution | |
| Computer formats | 640 x 480, 60, 67, 72, 75Hz 720 x 400, 70Hz 800 x 600, 56, 60, 72, 75Hz 832 x 624, 75Hz 1024 x 768, 60, 70, 75Hz 1152 x 864, 75Hz 1152 x 870, 75Hz 1280 x 720, 60Hz 1280 x 800, 60Hz 1280 x 1024, 60Hz 1440 x 900, 60Hz 1600 x 1200, 60Hz 1680 x 1050, 60Hz 1920 x 1080, 60Hz |
| Video formats | 480i, 60Hz 480p, 60Hz 576p, 50Hz 576i, 50Hz 720p, 60Hz 1080i, 50, 60Hz 1080p, 50, 60Hz 3840 x 2160, 30Hz 3840 x 2160, 60Hz |
| Connectivity | |
| Video input | DVI-I (x 1), HDMI 2.0 (x3), USB 2.0 (x2) |
| Audio input | 3.5 mm jack |
| Audio output | 3.5mm jack |
| External control | IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack |
| Other connections | OPS |
| Convenience | |
| Placement | Landscape (18/7), Portrait (18/7) |
| Tiled Matrix | Up to 10 x 15 |
| Signal loop through | RS232, IR Loopthrough |
| Ease of installation | Smart Insert |
| Energy saving functions | Smart Power |
| Network controllable | RS232, RJ45 |
| Keyboard control | Hidden, Lockable |
| Remote control signal | Lockable |
| Start-up | Switch on delay, Switch on status, Boot on source |
| Start-up window | enable / disable Philips logo |
| Operating conditions | |
| Temperature range (storage) | -20 ~ 60 °C |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hour(s) |
| Humidity range (operation)[RH] | 20 ~ 80% RH (No condensation) |
| Humidity range (storage) [RH] | 5 ~ 95% RH (No condensation) |
| Temperature range (operation) | 0 ~ 40 °C |
| Power | |
| Consumption (Typical) | 180 W |
| Consumption (Max) | 320 W |
| Standby power consumption | <0.5W |
| Mains power | 100 - 240V~, 50/60Hz |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
| Sound | |
| Built-in speakers | 2 x 10W RMS |
| Accessories | |
| Included Accessories | IR sensor cable (1.8 m) (x1), Philips logo (x1), AC power cord, AC Switch Cover, Quick start guide (x1), Remote control & AAA batteries, RS232 daisy chain cable (x1), USB Cover and screw x1, Wire Clamper (x3) |
| Miscellaneous | |
| On-Screen Display Languages | Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese |
| Regulatory approvals | CE, FCC, Class A, CB, BSMI, EPA, VCCI, CU, ETL, EMF, PSB |
| Warranty | 3 year warranty |
| Multimedia Applications | |
| USB Playback Video | H.264, JPEG, MPEG, WMV3 |
| USB Playback Picture | BMP, JPEG, PNG |
| USB Playback Audio | AAC, WMA, MPEG, HEAAC |
| Dimensions | |
| Set dimensions (W x H x D) | |
| Set dimensions in inch (W x H x D) | |
| Bezel width | 14.9 mm (Even bezel) |
| VESA Mount | 600 x 400 mm, M8 |
| Product weight | 37..3 kg |
| Product weight (lb) | 82.23 lb |
