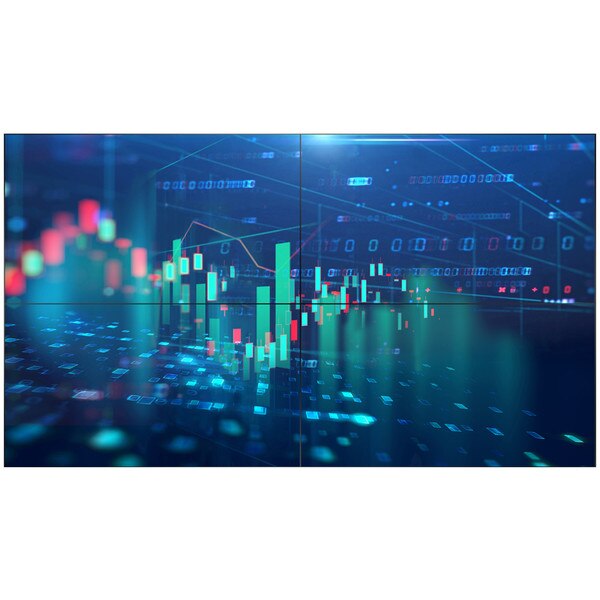

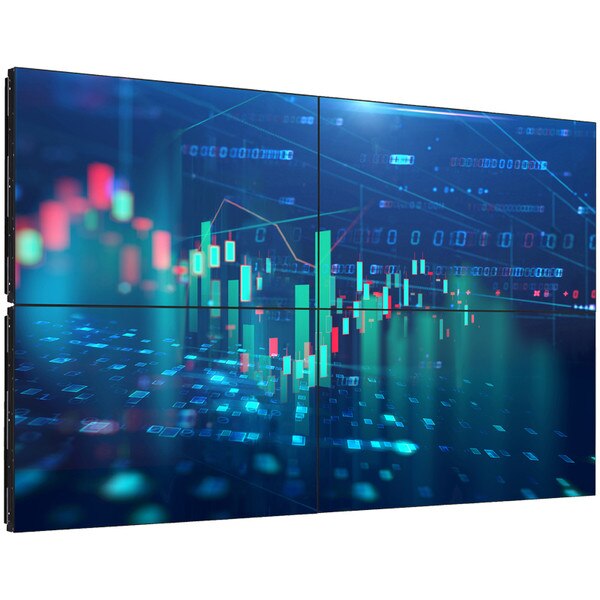

Philips 65" BDL6005X X-Line Signage Solutions Video Wall Display

SKU: 65BDL6005X
$5,640.00
Location Availability
Sydney Call For Availability
Brisbane Call For Availability
Melbourne Call For Availability
Perth Call For Availability

Details

Get the bigger picture

Monitor, manage and control

Ensure every detail is under control. The Philips X-Line Videowall display is designed for 24/7 operation and can be customised to fit all your content needs. View content from multiple sources in real-time with enhanced picture quality.


Effortless setup. Total control.

• Operate, monitor and maintain with CMND & Control

• Add Android processing power with an optional CRD50 module


Cost-effective system solution

• FailOver ensures content is always playing


Brilliant images. Endless possibilities.

• IPS panel: rich color consistency from every angle

• Ultra HD monitors. Brilliant images. Clear contrast

• Ultra-narrow bezels. For distraction-free images


Powerful system solution

• Energy-saving automatic backlight control

• OPS slot allows for PC embedding without cabling

• Tiling mode. Create tiled 4K videowalls of any size

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

OPS slot

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Tiling mode

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.

Pure Colour Pro

Boost image quality with Pure Colour Pro. Delivering higher luminance through custom colour temperature settings and advanced gamma calibration, content looks crisper and more radiant for stunning realism with a visual pop.

Specifications

Picture/Display
Diagonal screen size (metric)164
Diagonal screen size (inch)64.5
Panel resolution3840 x 2160
Optimum resolution3840 x 2160 @ 60 Hz
Brightness500
Dynamic contrast ratio500,000:1
Response time (typical)8
Aspect ratio0.672916667
Viewing angle (horizontal)178
Viewing angle (vertical)178
Pixel pitch0.372 x 0.372 mm
Display colours1.07 B
Contrast ratio (typical)54.16736111
Haze0.25
Supported Display Resolution
Computer formats720 x 400, 70 Hz
800 x 600, 60, 75 Hz
1024 x 768, 60, 75 Hz
1280 x 768, 60 Hz
1280 x 800, 60 Hz
1280 x 960, 60 Hz
1280 x 1024, 60 Hz
1360 x 768, 60 Hz
1366 x 768, 60 Hz
1600 x 1200, 60 Hz
1920 x 1080, 60 Hz
3840 x 2160, 60 Hz
Video formats720p, 50, 60 Hz
1080i, 25, 30 Hz
1080p, 50, 60 Hz
3840 x 2160, 60 Hz
2160 P 50, 60 Hz ((HDMI/OPS/DP)
Connectivity
Video inputDisplay Port 1.2 (x 1)
DVI-D (x 1)
HDMI 2.0 (x 2)
VGA (Analogue D-Sub) (x 1)
Audio input3.5 mm mini jack (x 1)
Video outputDisplayPort 1.2 (x 1)
Audio output3.5 mm Mini Jack (x 1)
External controlIR (in) 3.5 mm jack
IR (in/out) RJ45
LAN RJ45 (x2)
RS232 (in/out) RJ45
Other connectionsOPS
USB 2.0 (x 1)
Convenience
PlacementLandscape (24/7)
Portrait (24/7)
Tiled MatrixUp to 10 x 10
Signal loop throughDisplayPort
IR and RS232 via RJ45
LAN
Ease of installationCarrying Handles
Smart Insert
Energy-saving functionsSmart Power
Network controllableLAN (RJ45)
Screen-saving functionsPixel Shift, Low Bright
Operating conditions
Temperature range (operation)0 ~ 40
Temperature range (storage)-20 ~ 60
Altitude0 ~ 3000 m
MTBF50000
Humidity range (operation)[RH]20 - 80% (without condensation)
Humidity range (storage) [RH]5 - 95% (without condensation)
Power
Consumption (Typical)210
Consumption (Max)400 W
Standby power consumption0.5 W
Consumption (On mode)150 W
Energy Label ClassG
Sound
Built-in speakers2 x 10 W (RMS)
Accessories
Included AccessoriesAC Switch Cover
Edge Alignment Kit
Gap pad x 3
IR sensor cable (1.8 m) (x 1)
Quick start guide (x 1)
Remote control and AAA batteries
RJ45/RS232 converter
Wire Clamper (x 3)
Power cord
DP cable (x1)
RJ45 cable (x1)
Miscellaneous
On-Screen Display LanguagesArabic
English
French
German
Italian
Japanese
Polish
Russian
Spanish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvalsCE
FCC, Class A
RoHS
CB
ETL
Warranty3 year warranty
Dimensions
Set Width1432.6
Set Height807.6
Set Depth88.8 mm (D @ Wall Mount) / 91.7 mm(D @ Handle)
Set Width (inch)56.4
Set Height (inch)31.8
Set Depth (inch)3.50 (D @ Wall Mount) / 3.61 (D @ Handle)
Bezel width2.3 mm + 1.2 mm
Wall Mount400 mm x 400 mm, M6
Product weight29.2
