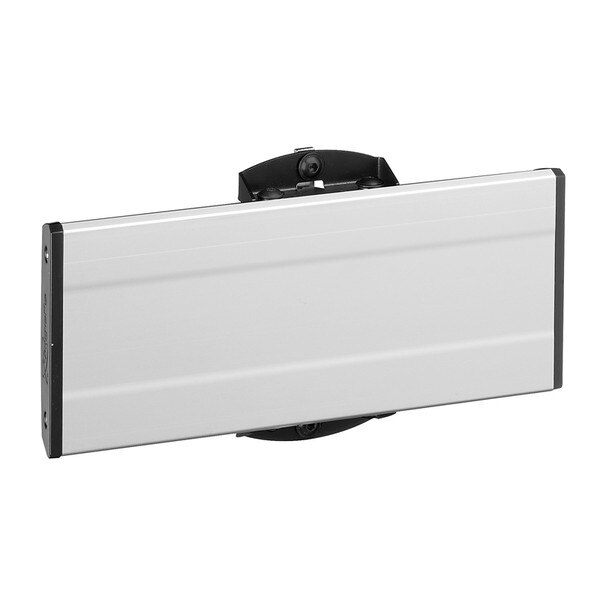

Vogels Display Interface Bar - Silver
SKU: PFB3402
Details
PFB 3402
Article number (SKU)
7234024
Colour
Silver
Key Benefits
• Endlessly expandable
• Modular
• Quick and easy installation

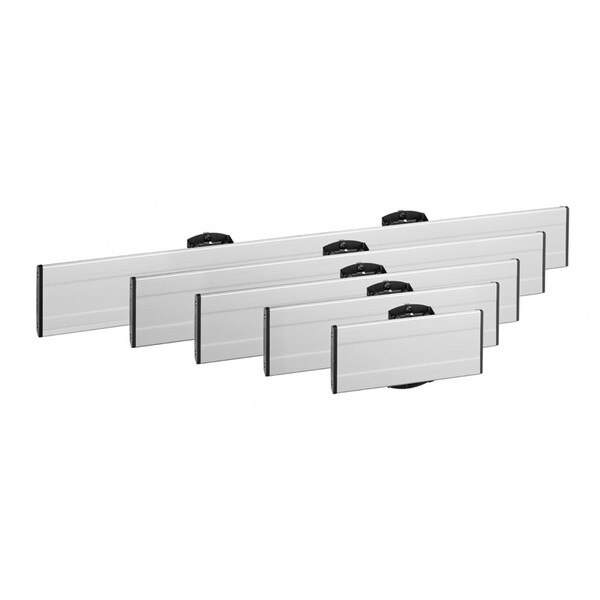

The PFB 3402 interface bar is part of the modular Connectit system
With which you can create your own ceiling, floor or wall solution.
The PFB 3402 has a max. horizontal fitment of 225 mm and can be combined
With the display interface strips of the PFS 3xxx Series.
Specifications
| Specifications | |
|---|---|
| EAN single box | 8.71E+12 |
| Series | Connect-it |
| Product group | Interface bar |
| Guarantee | 5 years |
| TÜV certified | Yes |
| Colour | Silver |

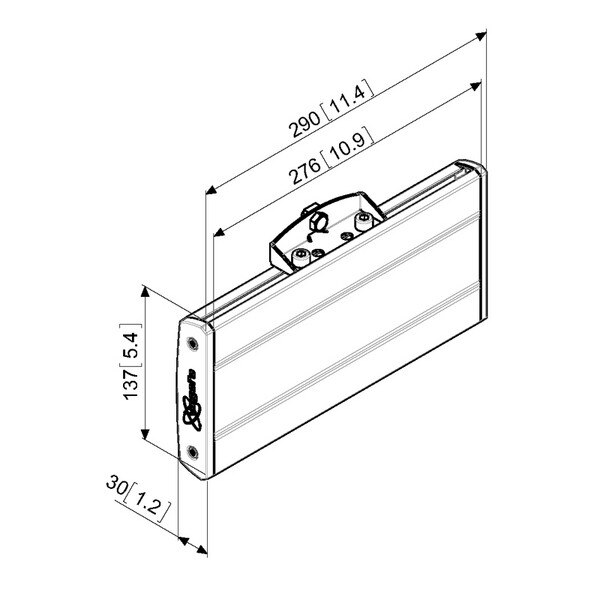

| Width (mm) | 290 |
| Max. weight load on pole (kg) | 80 |
| Max. weight load on wall (kg) | 53 |
| Fischer inside | Yes |
| Min. horizontal hole pattern (mm) | 100 |
| Max. horizontal hole pattern (mm) | 225 |
| Height options | Fixed height / Fixed height (screw) / Manually adjustable height |
| Width / Max. fitment (mm) | 290 / 225 mm |
