Vogels Display Interface Strips Tilt - Black
SKU: PFS3302
Details
PFS 3302
Article number (SKU)
7233020
Colour
Black
Key Benefits
• Modular
• Quick and easy installation
• Theft prevention
• Tilt function in steps

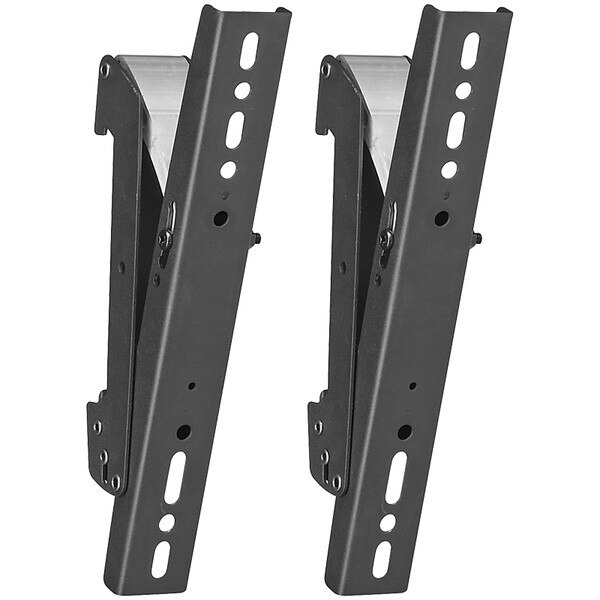

The PFS 3302 interface display strips is part of the modular Connect-it system
With which you can create your own ceiling or floor solution for medium to large sized displays.
The PFS 3302 is suitable for medium to large sized displays up to 80 kg with a max. vertical fitment of 270 mm
For creating a ceiling solution combine the PFS 3302 with a Connect-it ceiling plate, pole (PUC 25xx Series) and interface bar (PFB 34xx Series). For creating a floor solution combine the PFS 3302 with a Connect-it floor plate/ trolley, pole (PUC 27xx Series) and interface bar (PFB 34xx Series). The PFS 3302 can also be combined with the motorized products (PFFE 7110, PFTE 7112, PFWE 7150).
Specifications
| Specifications | |
|---|---|
| EAN single box | 8.71E+12 |
| Series | Connect-it |
| Product group | Interface strip |
| Colour | Black |
| TÜV certified | Yes |
| Guarantee | 5 years |
| Tilt | Tilt up to 20° |
| Max. weight load (kg) | 80 |
| Min. vertical hole pattern (mm) | 75 |
| Max. vertical hole pattern (mm) | 270 |

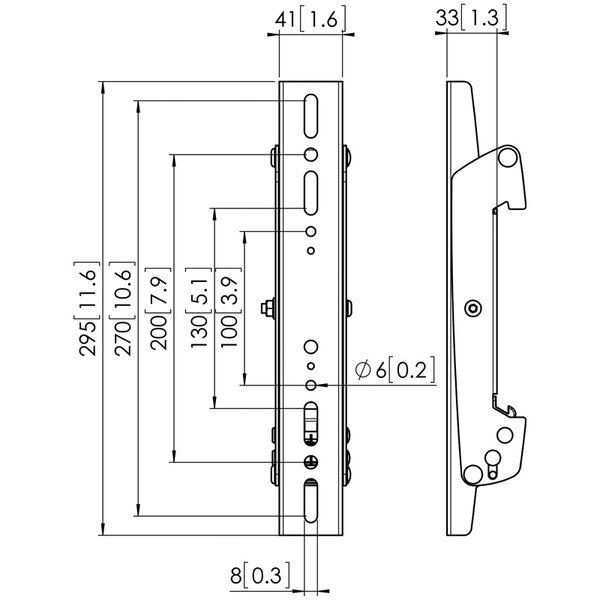

| Length display strips / Max. fitment (mm) | 295 / 270 mm |
