Kramer 2.5–Inch Closed–back Ceiling Speaker
SKU: GALIL-2-C
Details
2.5–Inch Closed–back Ceiling Speaker

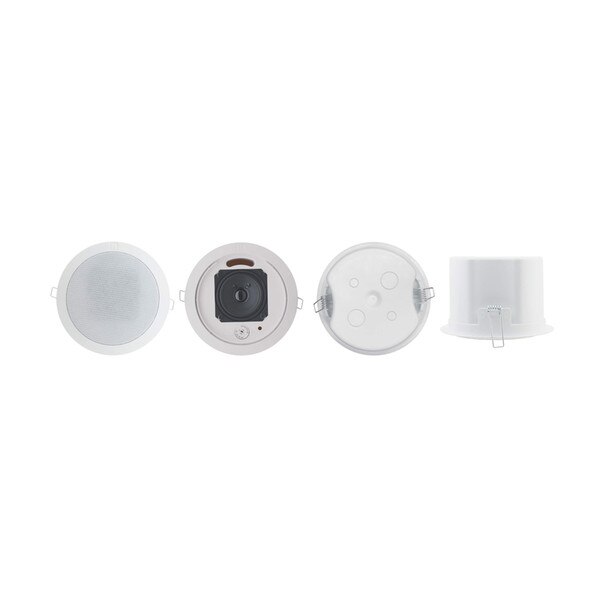

The Galil 2−C is a 2.5” full−range closed−back speaker with ceramic terminals and a plastic self−extinguishing back−can. It is especially designed to meet the requirements of fire alarm systems in public spaces and is EN 54−24 certified.
Specifications
| Product Specification | |
|---|---|
| Description | Full–range closed–back ceiling speaker |
| Frequency Response | 90Hz to 20kHz @–15dB, 150Hz to 20kHz @–3dB |
| Woofer | 2.5” (68mm) paper cone with rubber surround |
| Impedance | 8Ω (transformr tap in off position) |
| Transformer Taps | 70V — 3W/1.5W/0.75W/8Ω/10W/Off (Lo–Z) 100V — 6W/3W/1.5W/8Ω/10W, Off (Lo–Z) |
| Sensitivity | 69dB SPL, 10W@4m |
| Max Spl | |
| Continuous | 79.3dB SPL, 10W@4m |
| Power Handling | 10W RMS, 30W continuous program |
| Directivity Factor (Q) | 3.7, averaged 1kHz to 10kHz |
| Directivity Index (Di) | 5.7dB averaged 1kHz to 10kHz |
| Coverage Angle @-6Db | 500Hz–240°, 1kHz–160°, 2kHz–110°, 4kHz–105° |
| Input Connector | Ceramic terminals |
| Enclosure Protection Degree | IP21C |
| Materials | Frame, aluminum grille, safety cord attached to grille, plastic back–can (self–extinguishing ABS according to UL94 V–0) |
| Operating Temperature | –10° to +55°C (14° to 131°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Weight Per Single Speaker | 0.5kg (1.1bs) |
| Installation Clearance | |
| Mounting Depth | 9.5cm (3.74") |
| Cut-Out Diameter | 12.6cm |
| Colors | White |
