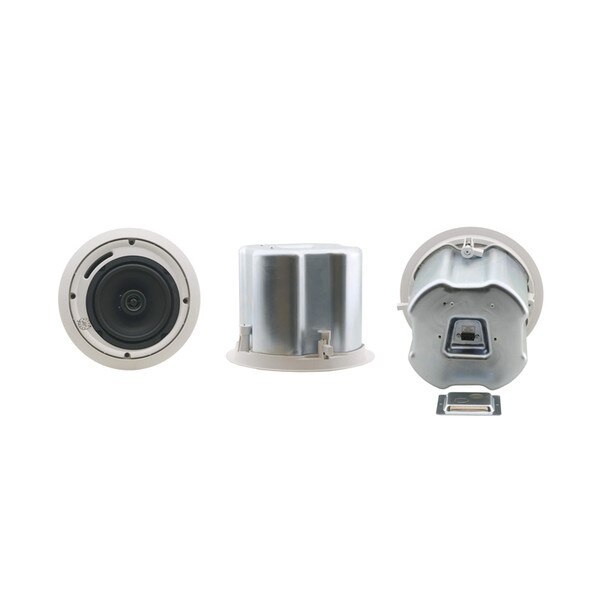

Kramer 6.5–Inch, 2–Way Closed–Back Ceiling Speakers
SKU: GALIL-6-C(PAIR)
_01.jpg?resizeid=3&resizeh=600&resizew=600)
_02.jpg?resizeid=3&resizeh=600&resizew=600)
Details
6.5–Inch, 2–Way Closed–Back Ceiling Speakers

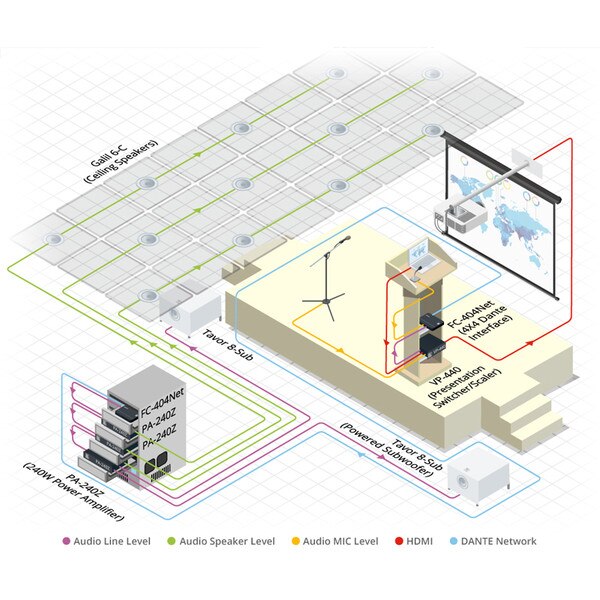

The Galil 6−C (formerly SPK−C612) Closed−back Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
Specifications
| Product Specification | |
|---|---|
| Description | 2–way closed–back ceiling speakers |
| Frequency Response | 80Hz to 20kHz @ — 10dB, 95Hz to 20kHz @ ±3dB |
| Woofer | 6.5” (165mm) polypropylene with rubber surround |
| Tweeter | 0.5” (13mm) Mylar dome |
| Impedance | 8Ω (transformer tap in off position) |
| Transformer Taps | 70V — 3.7W/7.5W/15W/30W/Off (Lo–Z), 100V — 7.5W/15W/30W/Off (Lo–Z) |
| Sensitivity | 87dB SPL, 1W @1m |
| Max Spl | |
| Continuous | 100.7dB |
| Peak | 103.7dB |
| Power Handling | 30W RMS, 80W continuous program |
| Crossover Frequency | 9.2kHz |
| Coverage Angle | 101° |
| Directivity Factor (Q) | 7.5 averaged 1kHz to 10kHz |
| Directivity Index (Di) | 8.6dB averaged 1kHz to 10kHz |
| Input Connector | Terminal block |
| Materials | ABS bezel, aluminum grill, metal back can |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
| Weight Per Single Speaker | 2.85kg (6.28lbs) approx |
| Shipping Weight (For Pair) | 8kg (17.64lbs) approx |
| Installation Dimesions | |
| Mounting Depth | 19.6cm (7.72") |
| Cutout Diameter | 22.4cm (8.82") |
| Accessories | Installation bracket, safety cord attached to grill, ceiling mounting kit |
| Colors | Available in white |
