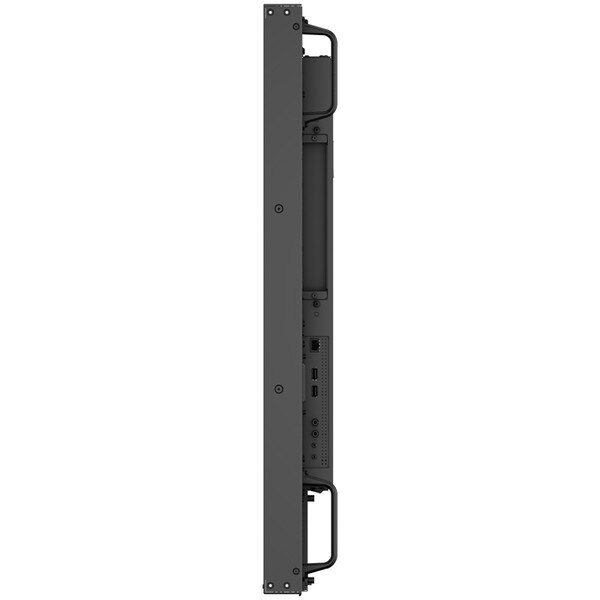

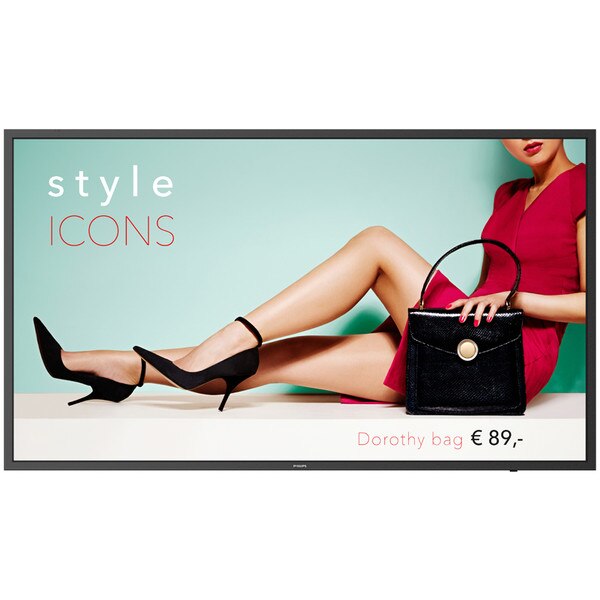

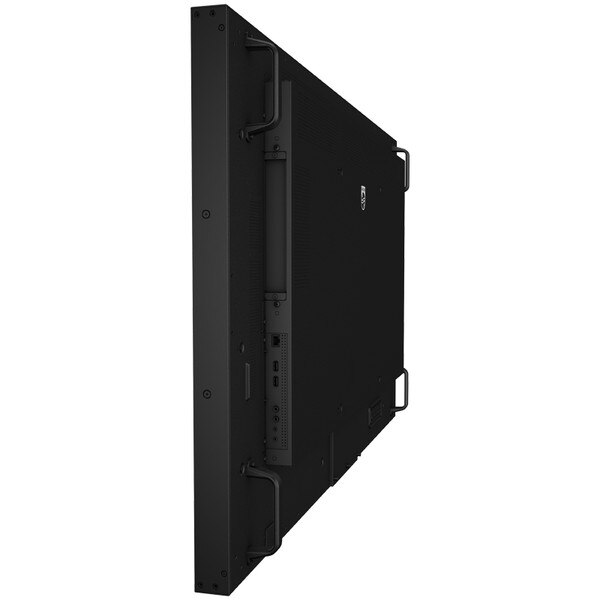

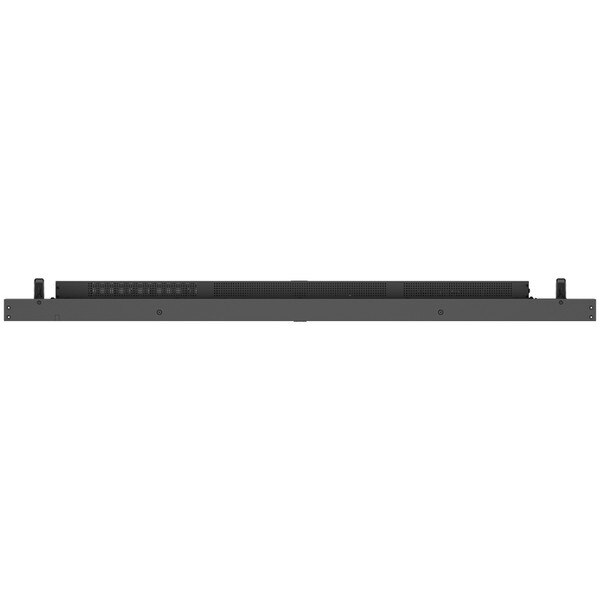

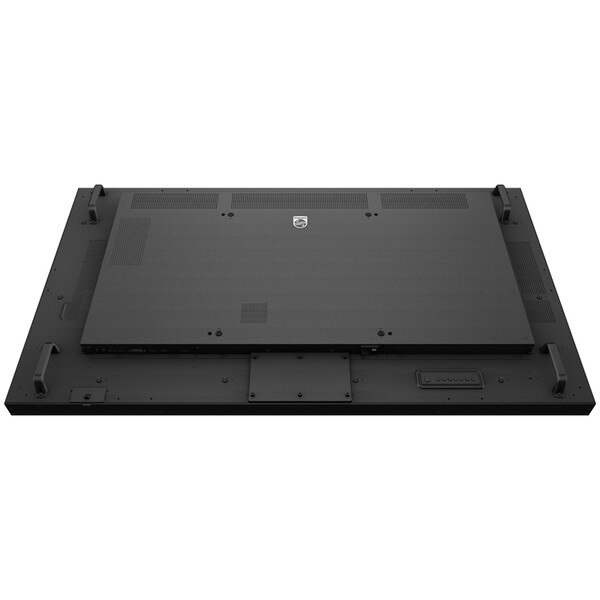

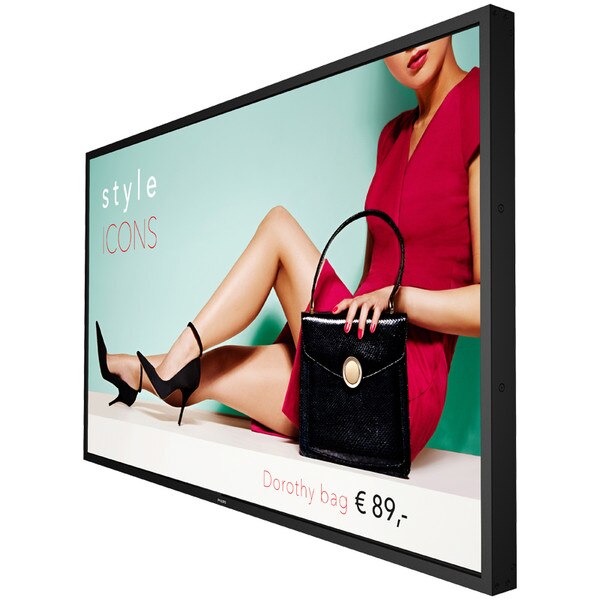

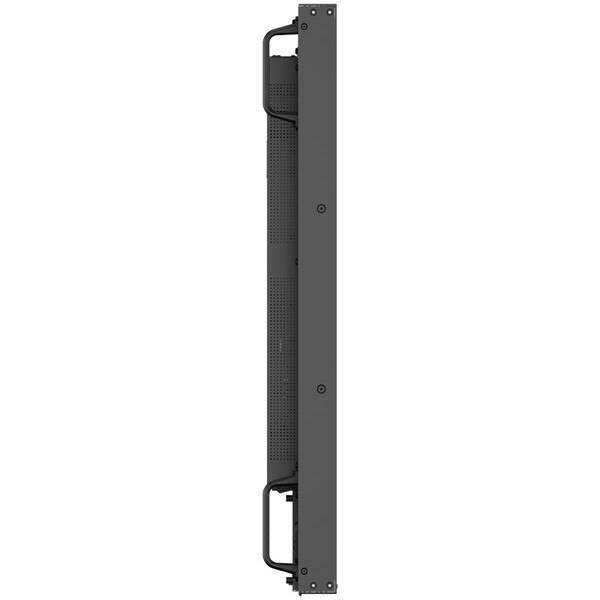

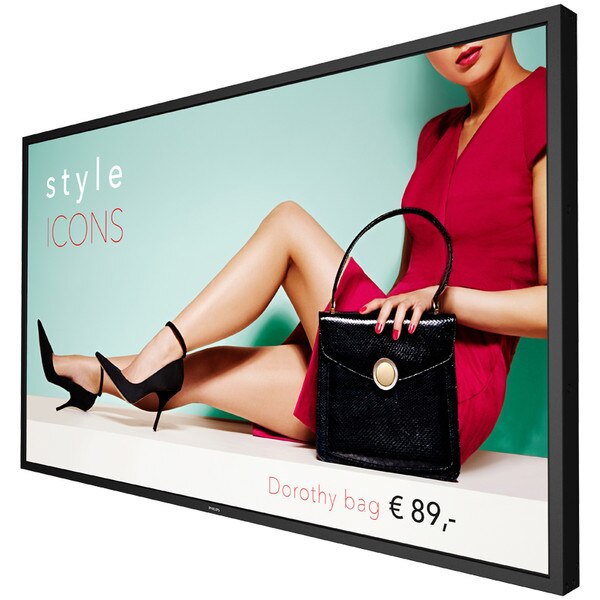

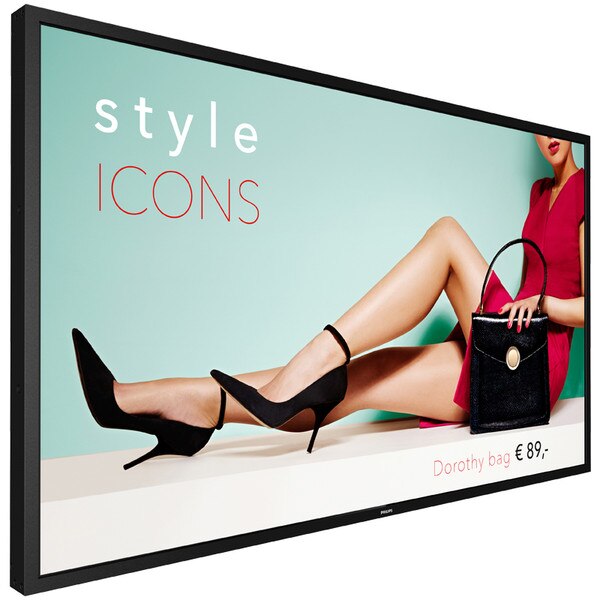

Philips 55" BDL4002H H-Line High Bright Digital Signage Display

SKU: 55BDL4002H
$5,720.00
Location Availability
Sydney < 5
Brisbane Call For Availability
Melbourne Call For Availability
Perth Call For Availability

Details

Vibrant visibility in any lighting condition

High bright 24/7 display

Stay visible day and night with Philips H-Line high bright displays. Astonishing clarity and contrast make these a perfect solution to showcase engaging content in windows and lighter locations, from airports to shopping centres and more.


Effortless setup. Total control.

• CMND and Create. Develop and launch your own content

• Add Android processing power with an optional CRD50 module


Versatile system solution

• OPS slot allows for PC embedding without cabling

• FailOver. Ensure your display never goes blank

• Designed for extreme conditions


Superb picture. Ultra-high brightness.

• Full HD resolution street signage

• Built-in ambient light sensor - automated brightness control

CMND and Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

FailOver

Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection, and you're ready for instant content protection.

OPS slot

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Optional CRD50 module

Embed an Android System-on-Chip (SoC) into your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Extreme conditions

Enhanced thermal management, High TNI Liquid Crystals panels and built-in thermal sensors to cope with high ambient temperatures (sunlight or other) up to 2500 cd/m². Display polariser compatible with polarised sunglasses for sunlight readability.

High brightness

High-brightness, street-facing digital displays command attention in any lighting condition, boosting shop exposure and attracting customers. Spectacular brightness of up to 2500 cd/m² ensures high visibility and pure image quality, even in extreme ambient light conditions.

Specifications

Picture/Display
Diagonal screen size54.6 inch / 138.7 cm
Panel resolution1920 x 1080p
Optimum resolution1920 x 1080 @ 60 Hz
Brightness2500 cd/m²
Dynamic contrast ratio500000:1
Response time (typical)8 ms
Aspect ratio0.672916667
Viewing Angle (H / V)178 / 178 degree
Pixel pitch0.63 x 0.63 mm
Display colours1.07 B
Contrast ratio (typical)166.6673611
Supported Display Resolution
Computer formats640 x 480, 60, 72, 75 Hz
720 x 400, 70 Hz
800 x 600, 60, 75 Hz
1024 x 768, 60, 75 Hz
1280 x 768, 60 Hz
1280 x 800, 60 Hz
1280 x 960, 60 Hz
1280 x 1024, 60 Hz
1360 x 768, 60 Hz
1366 x 768, 60 Hz
1600 x 1200, 60 Hz
1920 x 1080, 60 Hz
Video formats720p, 50, 60 Hz
1080i, 25, 30 Hz
1080p, 50, 60 Hz
Connectivity
Video inputDisplay Port 1.2 (x 1), DVI-I (x 1), HDMI 2.0 (x 2)
Audio input3.5 mm jack
Video outputDisplayPort 1.2 (x 1), HDMI 2.0 (x1)
Audio output3.5 mm jack
External controlIR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
Other connectionsOPS, USB 2.0 (x 2)
Convenience
PlacementLandscape (24/7), Portrait (24/7)
Screen-saving functionsPixel Shift, Low Brightness
Signal loop throughDisplayPort, RS232, HDMI, IR Loop through

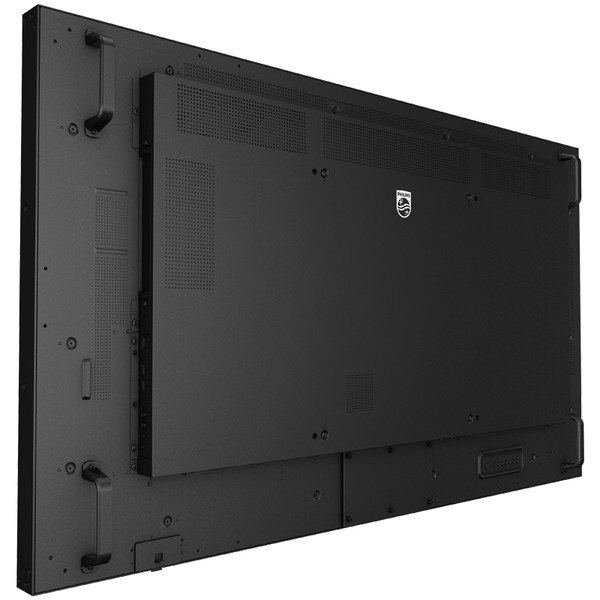

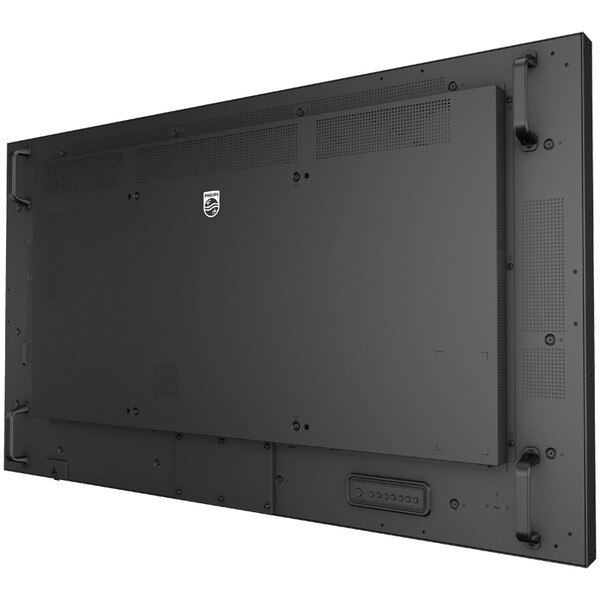

Ease of installationCarrying Handles, Smart Insert
Energy-saving functionsSmart Power
Network controllableRS232, RJ45
Keyboard controlHidden, Lockable
Remote control signalLockable
Operating conditions
Temperature range (operation)0 ~ 40 °C
Temperature range (storage)-20 ~ 60 °C
Altitude0 ~ 3000 m
MTBF50,000 hour(s)
Humidity range (operation)[RH]20~80% RH (No condensation)
Humidity range (storage) [RH]5~95% RH (No condensation)
Power
Consumption (Typical)245 W
Consumption (Max)430 W
Standby power consumption<0.5 W
Mains power100 ~ 240 VAC, 50 ~ 60 Hz
Sound
Built-in speakers2 x 10 W RMS
Accessories
Included AccessoriesAC Switch Cover, IR sensor cable (1.8 m) (x 1), Philips logo (x 1), Quick start guide (x 1), Remote control and AAA batteries, USB Cover and screw x 1, Wire Clamper (x 3), AC Power Cord, Edge Alignment Kit, Open-frame kit
Miscellaneous
On-Screen Display LanguagesArabic, Dutch, English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese
Regulatory approvalsCE, FCC, Class A, UL/cUL, CB
Warranty3 year warranty
Multimedia Applications
USB Playback VideoAVI, MP4, MPEG, MPG, TS, VOB, MPEG4
USB Playback PictureBMP, JPEG, JPG, PNG
Dimensions
Smart Insert mount100 mm x 100 mm pitch, 6 x M4L6
Set dimensions (W x H x D)1248.6 x 719.4 x 85 mm
Set dimensions in inch (W x H x D)49.16 x 28.32 x 3.35 inch

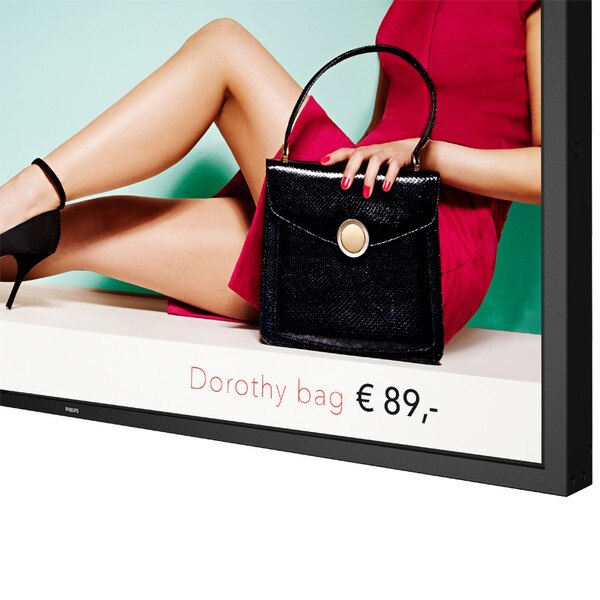

Bezel width17.5 mm (even bezel)

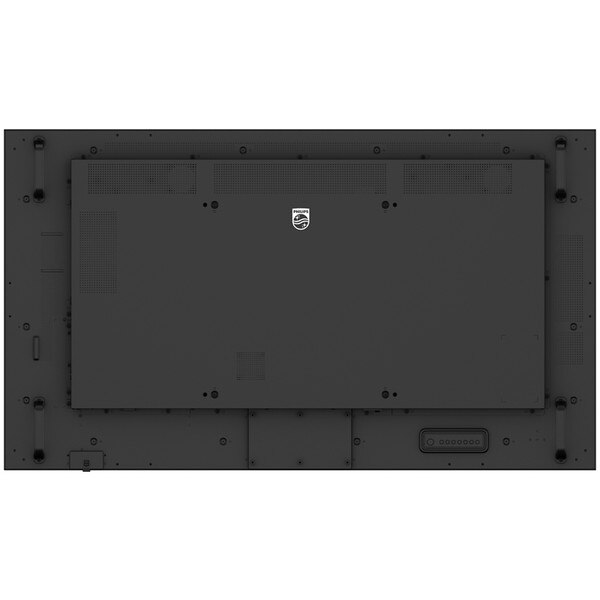

Wall Mount400 x 400 mm, M6
Smart insert height100 mm
Product weight30.37 kg
Product weight (lb)66.95 lb
