Vogels Display Interface Strips Tilt - Black
SKU: PFS3308
Details
PFS 3308
Article number (SKU)
7233080
Colour
Black
Key Benefits
• Modular
• Quick and easy installation
• Theft prevention
• Tilt function in steps

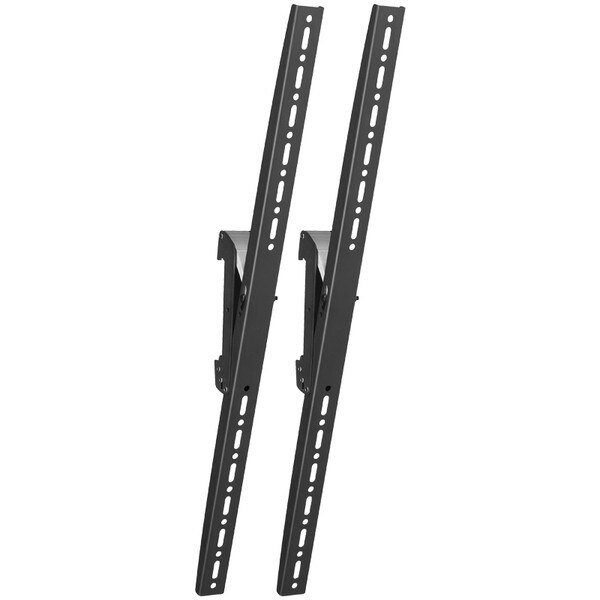

The PFS 3308 interface display strips is part of the modular Connect-it system or floor solution for medium to large sized displays.
With which you can create your own ceiling
The PFS 3308 is suitable for medium to large sized displays up to 80 kg with a max. vertical fitment of 800 mm
For creating a ceiling solution combine the PFS 3308 with a Connect-it ceiling plate, pole (PUC 25xx Series) and interface bar (PFB 34xx Series). For creating a floor solution combine the PFS 3308 with a Connect-it floor plate/ trolley, pole (PUC 27xx Series) and interface bar (PFB 34xx Series). The PFS 3308 can also be combined with the motorized products (PFFE 7110, PFTE 7112, PFWE 7150).
Specifications
| Specifications | |
|---|---|
| EAN single box | 8.71E+12 |
| Series | Connect-it |
| Product group | Interface strip |
| Colour | Black |
| TÜV certified | Yes |
| Guarantee | 5 years |
| Tilt | Tilt up to 20° |
| Max. weight load (kg) | 80 |
| Min. vertical hole pattern (mm) | 200 |
| Max. vertical hole pattern (mm) | 800 |
| Length display strips / Max. fitment (mm) | 830 / 800 mm |
